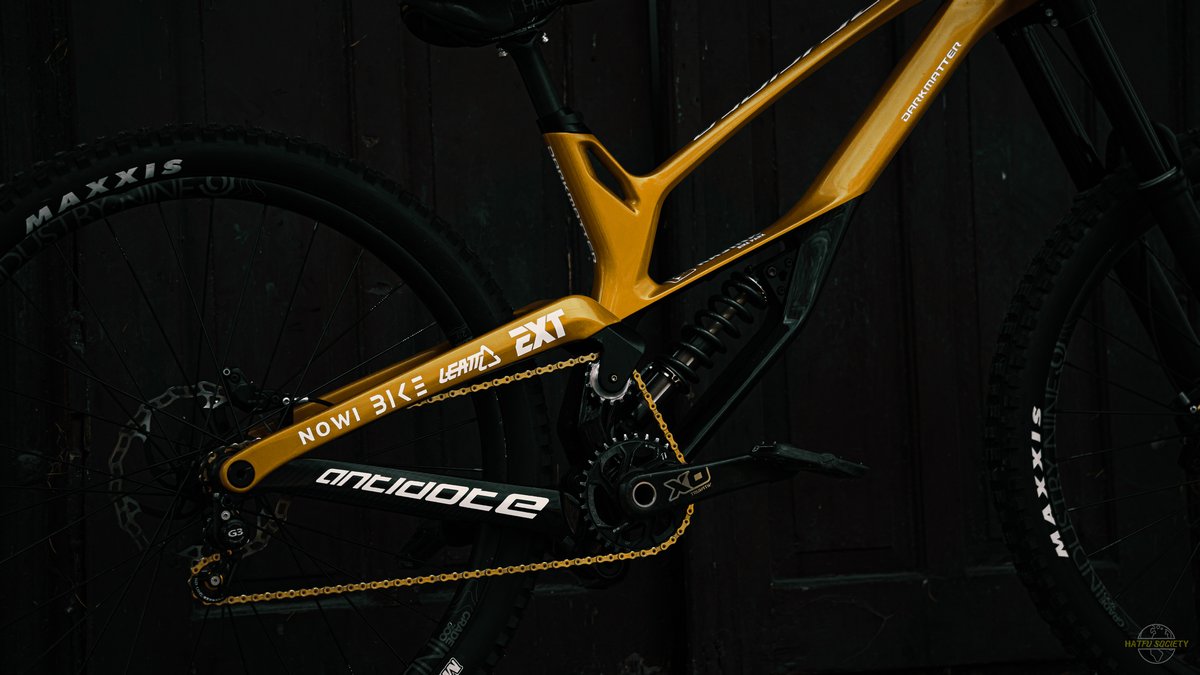

Antidote Bikes Darkmatter 29
Regular price £4,499.00
DH races, being the mountain biking’s equivalent of Formula 1, always pose serious challenges both to the rider as well as the designer. Although it’s unclear whether course designs changed to accommodate 29”- wheeled bikes, or their relentlessly increasing difficulty naturally suits the larger wheels, one thing is for certain – the rider needs an entirely different steed to what was once enough.
The new Darkmatter is built for winning. It’s long and the centre of gravity is low, which assures stability at speed, without sacrificing the responsiveness in the corners. A fully reworked Noster Kinetics suspension platform ensures maximum suspension efficiency by employing all of the benefits of the high pivot layout.
The bike performs at its best during acceleration as well as braking, and will glide through the largest obstacles with ease.
The challenges, however, don’t stop at the highest level of racing. Riding in the bike park will also allow you to explore the incredible capability of the new Darkmatter by opening up a whole new world of extreme lines you’d never think were possible.

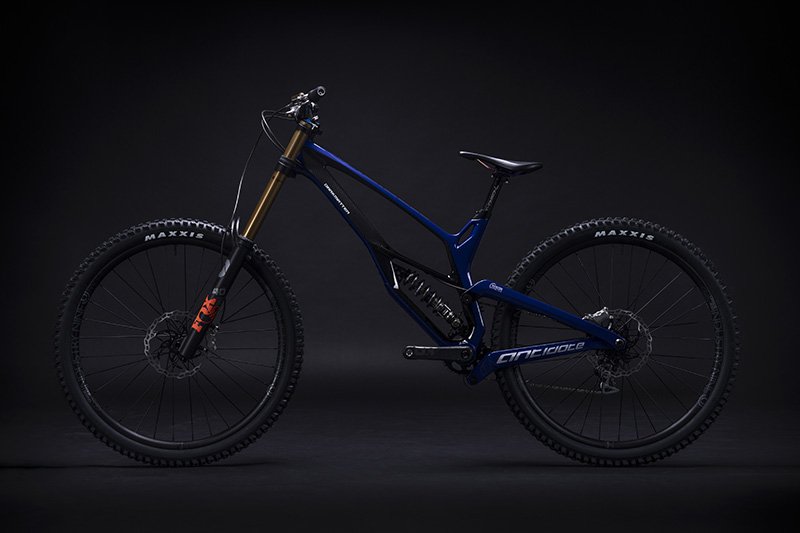

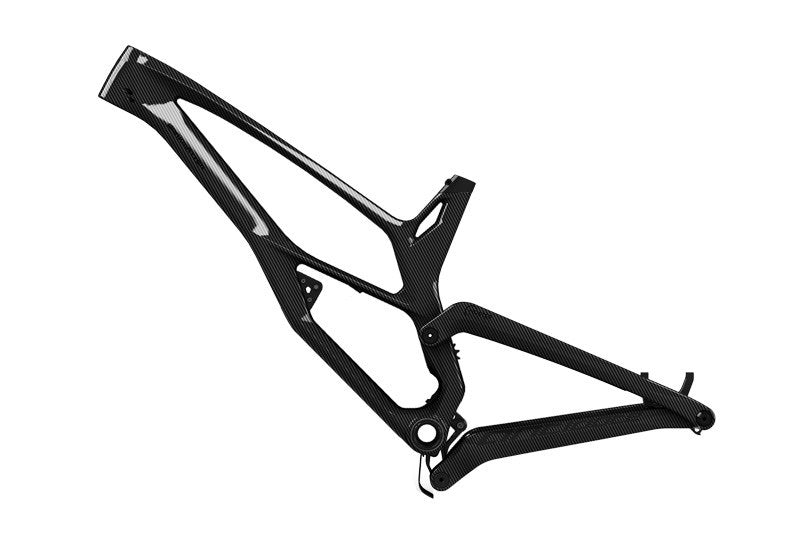

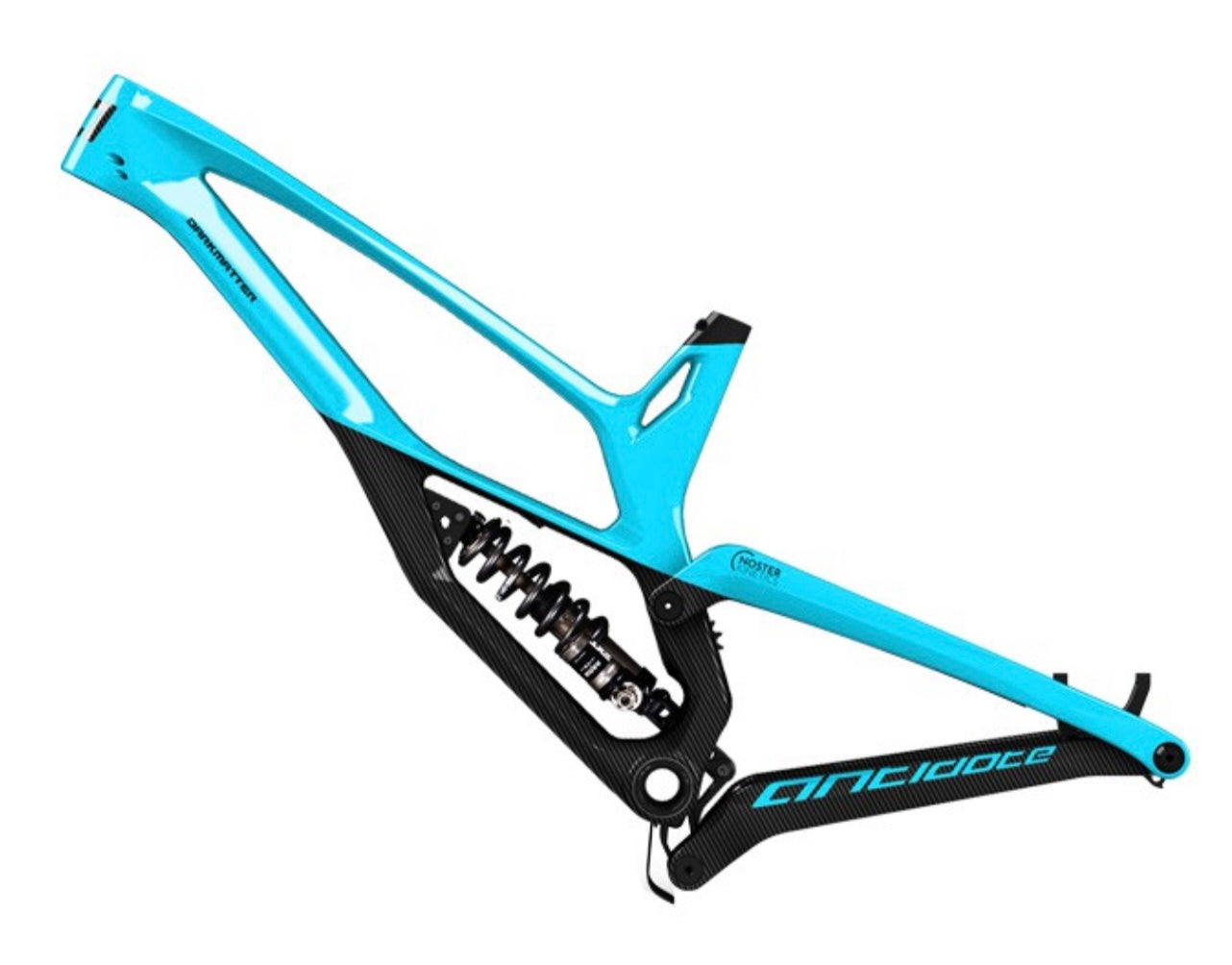

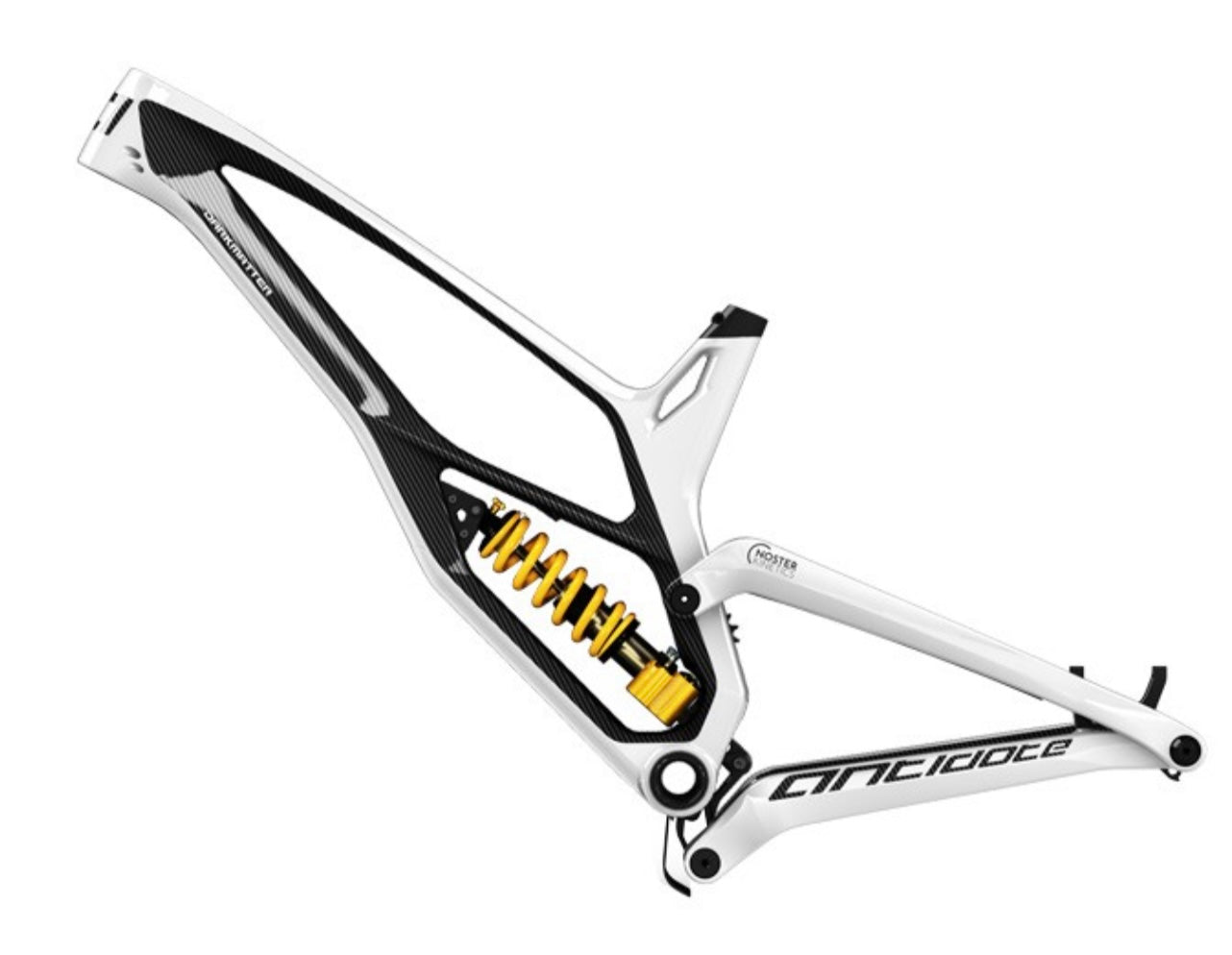

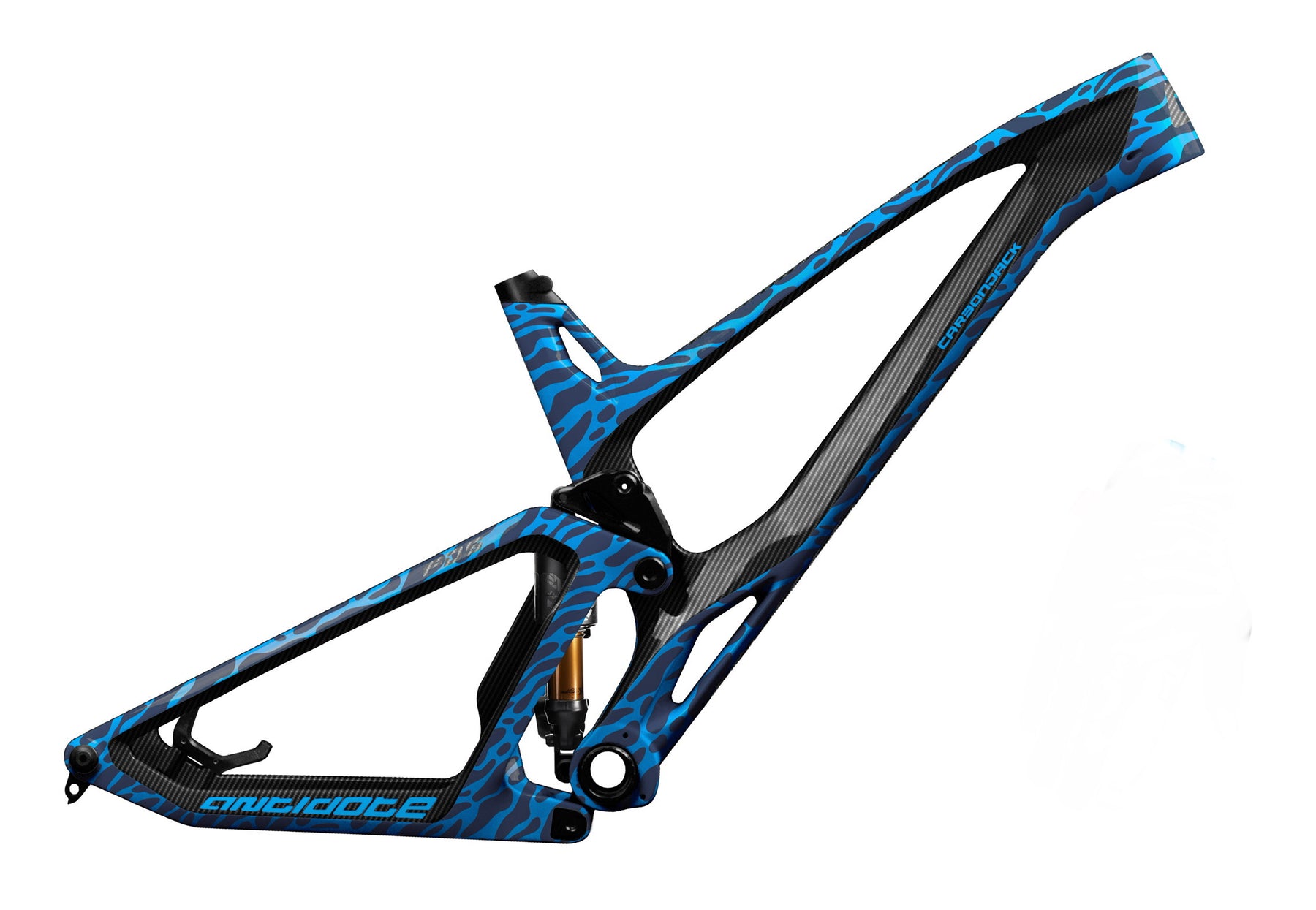

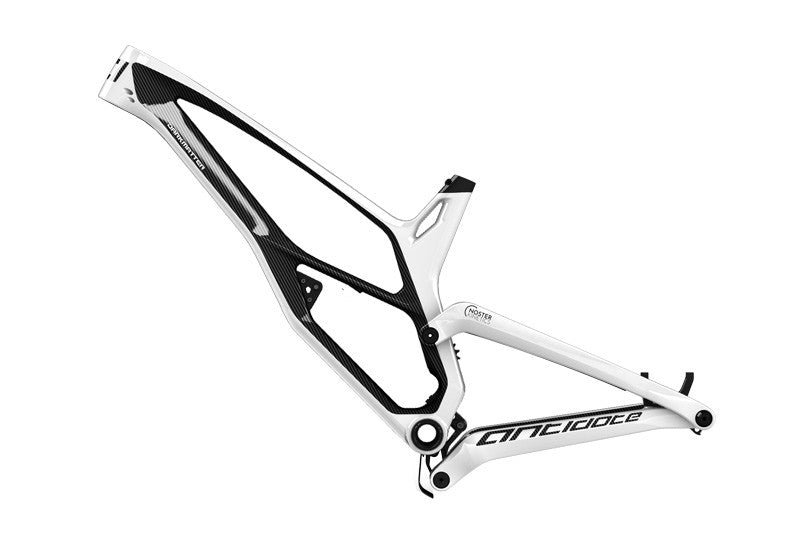

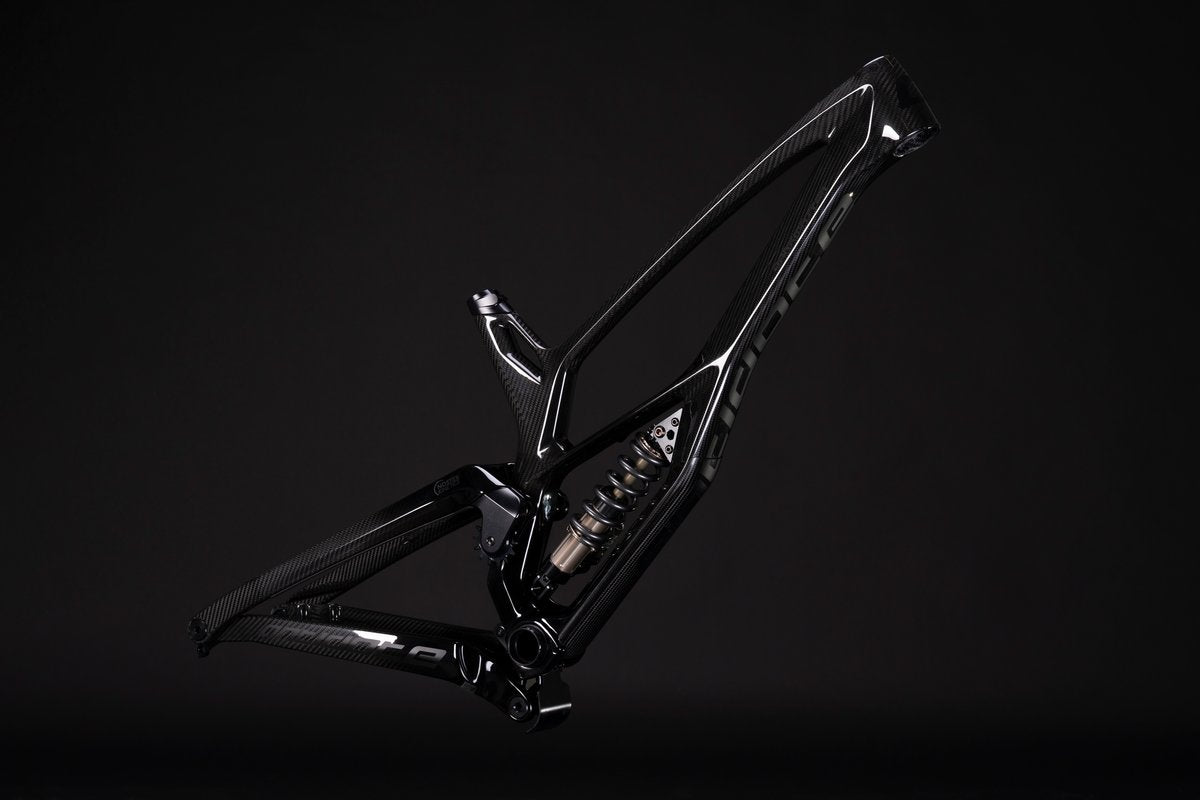

We took apart the original 27.5” Darkmatter, kept what’s best and worked around it to make it even better, and now we’re proud to present the entirely new Darkmatter 29! Our new model is a work of the highest engineering craft, dressed up in unique design.

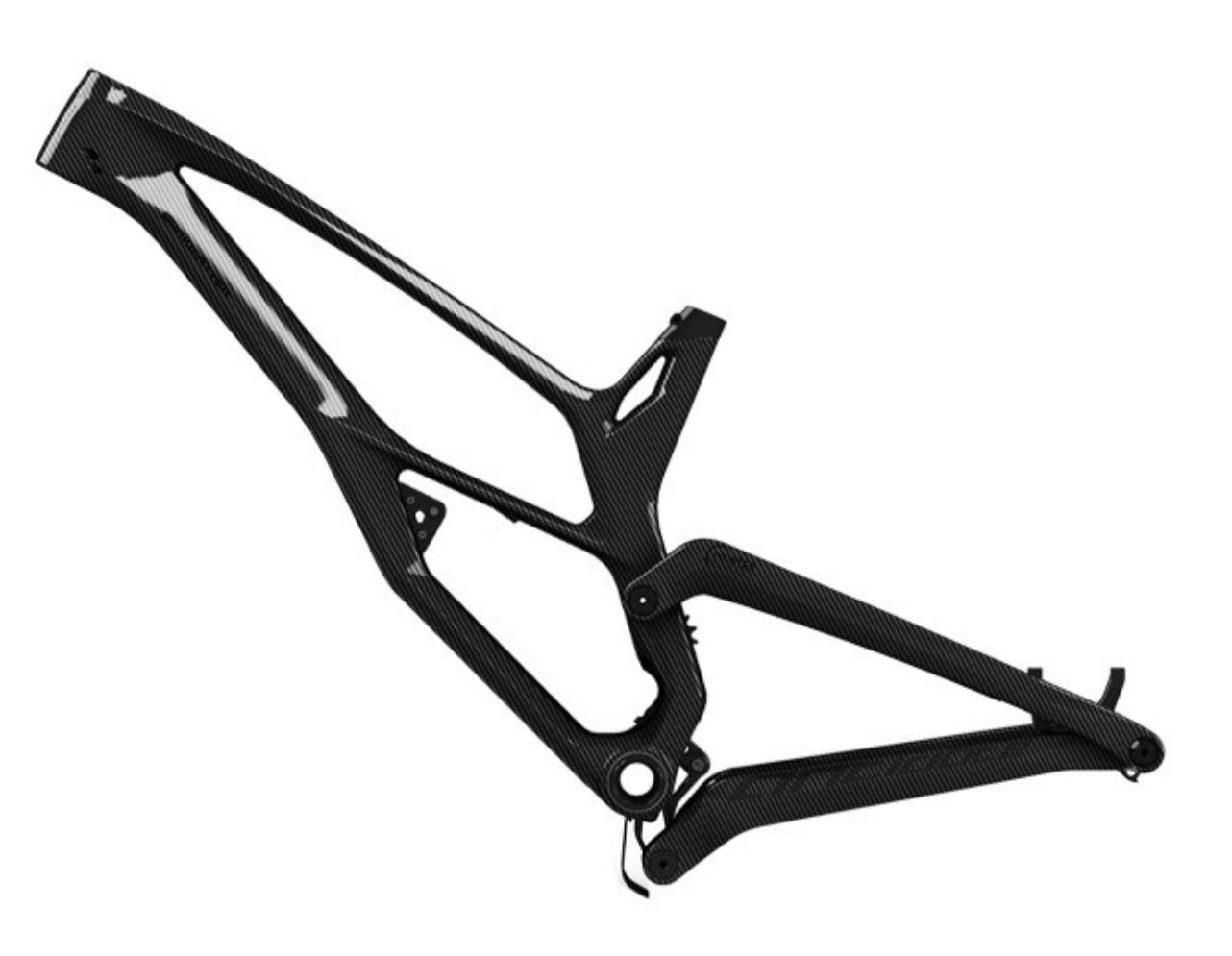

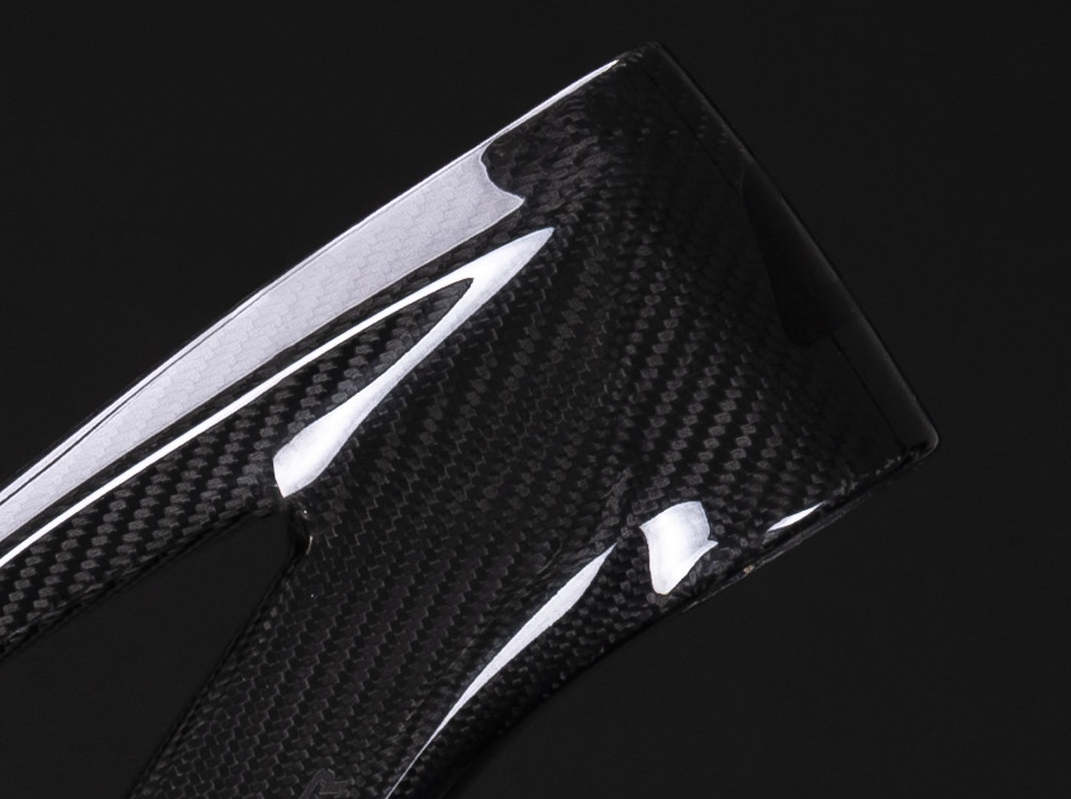

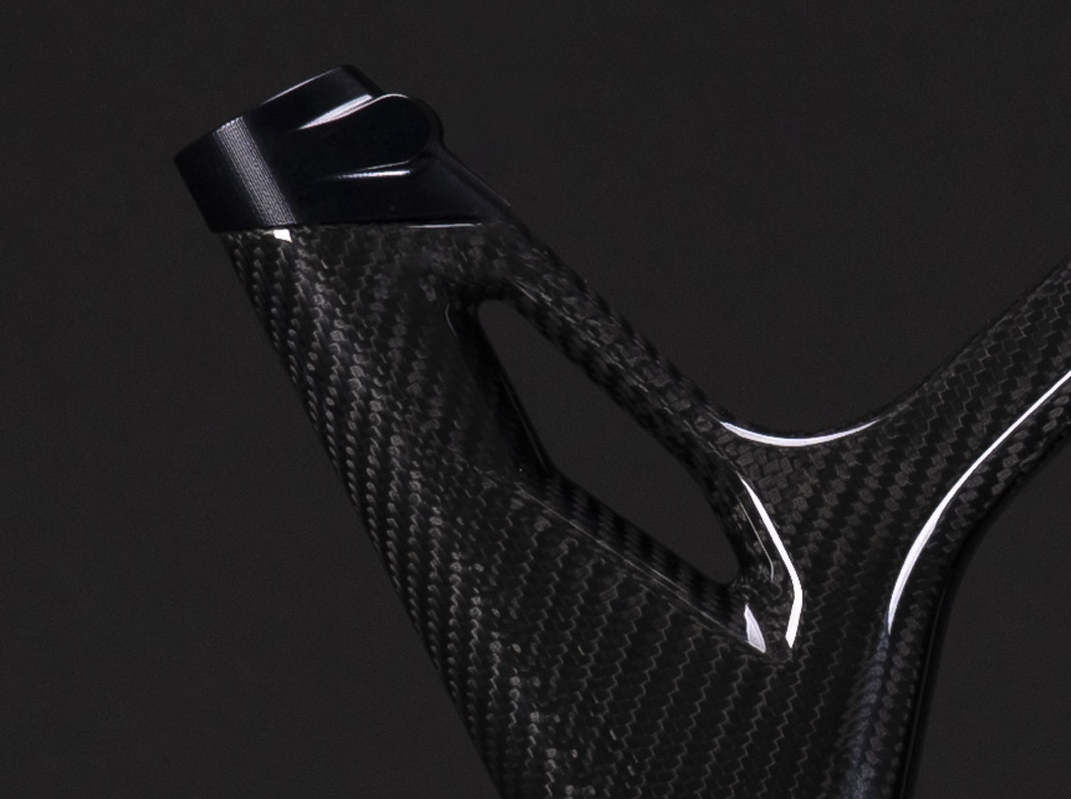

Apart from the stunning looks, it has everything a racing platform of the future should have: high pivot suspension design with an idler pulley, super low centre of gravity, highest quality materials usually reserved for aerospace and motorsport applications, low weight and superb durability.
The new Darkmatter is aimed at the most demanding DH rider. Two included linkages allow the platform to be quickly transformed into mullet mode (accommodating a 27.5” rear wheel), which pens up an enormous number of possible setups, ensuring a perfect fit for every rider.
The 29” version features a classic balanced geometry, while the mullet has a shorter chainstay and of course a smaller rear wheel, which can be a big advantage on technical courses. Both of these
configurations are based on Golden Ratio geometry, with a slightly shorter front center and longer rear end, which sets up the rider dead center between the wheels, working wonders for stability.

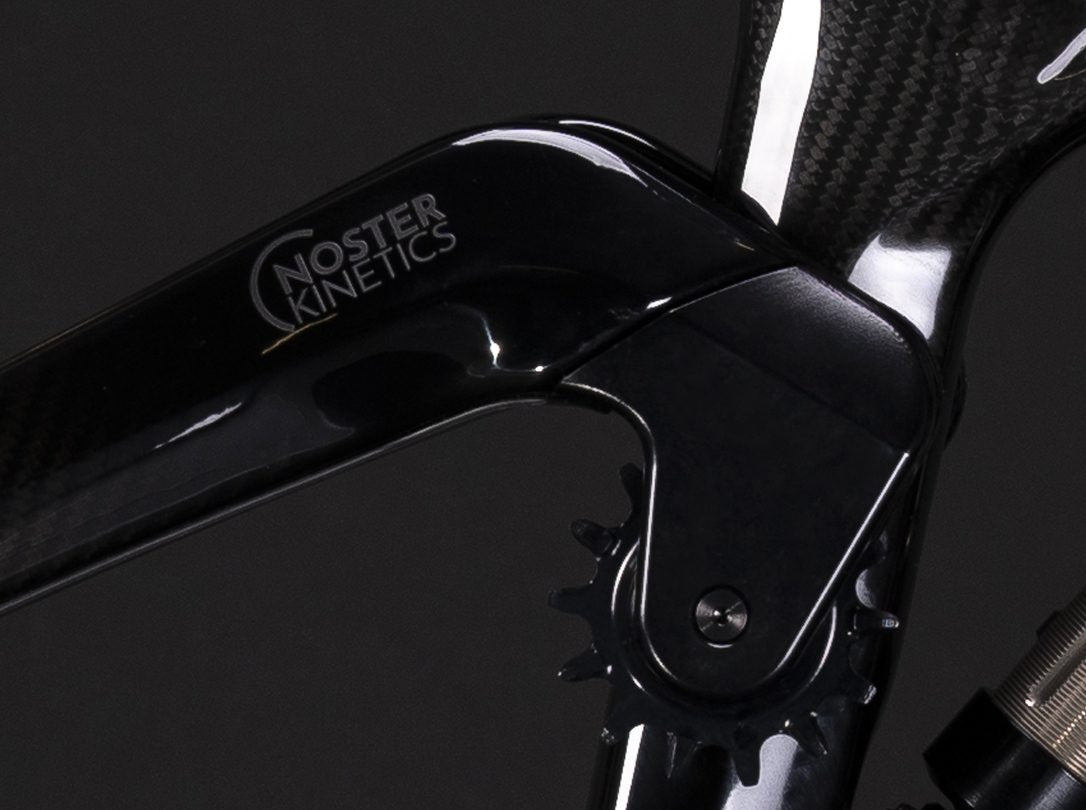

The Noster Kinetics system is suited for downhill bikes only, based around a split pivot system with a high pivot design and synergical features:
Size | M | L | XL | |
Seat Tube Length | A | 430 | 430 | 430 |
Top Tube Length Horizontal | B | 594,4 | 624 | 658 |
Head Tube Length | C | 100 | 100 | 110 |
Seat Tube Angle Horizontal | D | 76,8° | 76,8° | 76,8° |
Head Tube Angle | E | 63° | 63° | 63° |
Chainstay Length | F | 449/442 (Mullet) | 449/442 (Mullet) | 449/442 (Mullet) |
Front Center | G | 808 | 838 | 872,5 |
Wheelbase | H | 1257 | 1287 | 1321,5 |
Reach | I | 445 | 475 | 505 |
Stack | J | 636,7 | 636,7 | 645,6 |
Spread | K | 776,8 | 794,4 | 819,6 |
Spread Angle (measured from horizon) | L | 55° | 53,3° | 52° |
BB Drop | M | 30/10 (Mullet) | 30/10 (Mullet) | 30/10 (Mullet) |
BB Height (for 752 mm front wheel diamater) | N | 346 | 346 | 346 |
Fork Offset | O | 48 | 48 | 48 |
Seatpost insert | 170 | 170 | 170 | |
Trail | 137,7 | 137,7 | 137,7 |
SET | FOX40 & EXT ARMA Lok V3/SRAM X01 | Ohlins DH38 m.2 & TTX 22./SRAM X01 |
PRICE | From £8,399 | From £8,699 |
Frame | Darkmatter Noster Suspension, 190 mm travel, Boost | Darkmatter Noster Suspension, 190 mm travel, Boost |
Fork | Fox 40 Factory Grip2 200 mm | Ohlins DH38 m.2 200 mm |

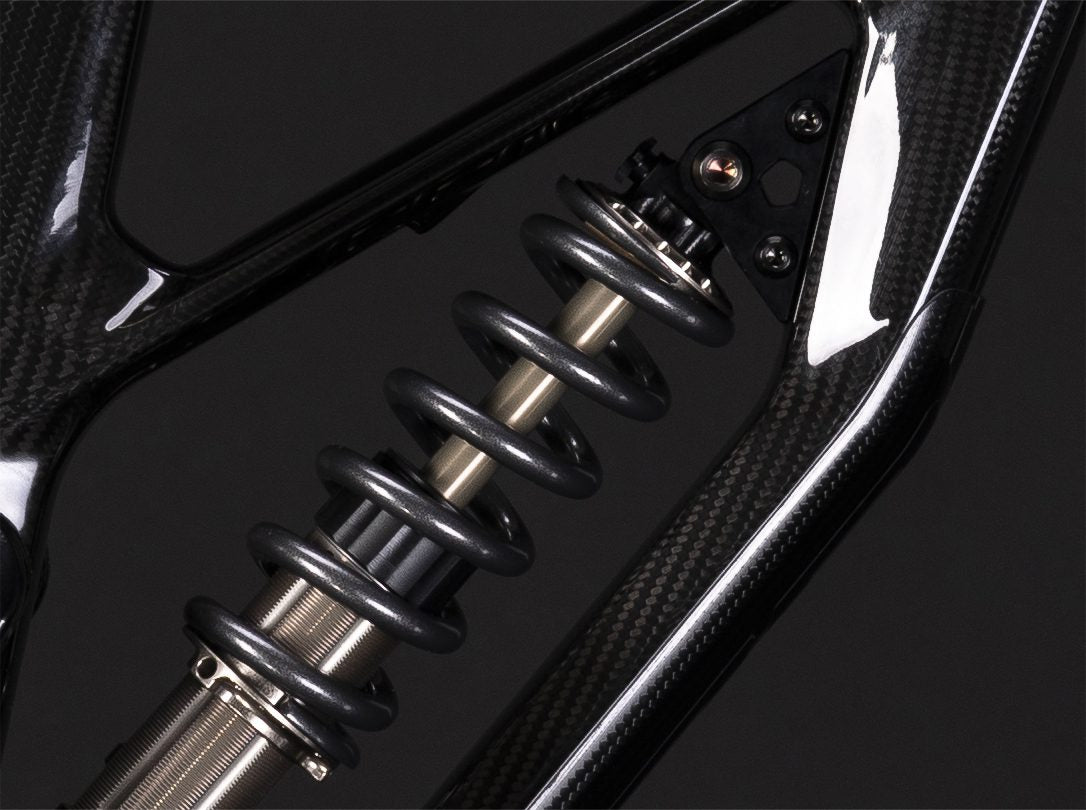

Rear Shock | EXT ARMA V3 250x75mm | Ohlins TTX22M 250×75 mm |
Wheels | Industry Nine Grade 300 20×110 / 12×148 mm | Industry Nine Grade 300 20×110 / 12×148 mm |
Deraileur | SRAM X01 DH | SRAM X01 DH |
Shifter | SRAM X01 DH | SRAM X01 DH |
Casette | SRAM XG-795 10-24T 7s | SRAM XG-795 10-24T 7s |
Chain | SRAM 11s | SRAM 11s |
Crankset/Chainring | SRAM X01 DH | SRAM X01 DH |
Bottom Bracket | SRAM DUB | SRAM DUB |
Brakes | SRAM CODE RSC | SRAM CODE RSC |
Rotors | Galfer 203 | Galfer 203 |
Seatpost | Thomson Elite 30,9 mm | Thomson Elite 30,9 mm |
Handlebar | Antidote 35 810mm | Antidote 35 810mm |
Stem | Sixpack Millenium DRM | Sixpack Millenium DRM |
Tires | Maxxis Minion DHF 29×2,5WT DH Casing /MInon DHR II 2,4WT DH Casing | Maxxis Minion DHF 29×2,5WT DH Casing /MInon DHR II 2,4WT DH Casing |
Saddle | Ergon SMD2 | Ergon SMD2 |
Headset | CaneCreek 40 ZS44/ZS56 | CaneCreek 40 ZS44/ZS56 |
Grips | Ergon GFR1 | Ergon GFR1 |
