    2022 Lapierre Shaper 1.0 Women's Hybrid
    Lapierre
    £499.00 from £329.00 Save £170.00
    Mondraker Arid Carbon Gravel Bike
    Mondraker
    £3,199.00
    Mondraker Arid Carbon Gravel Bike
    Mondraker Arid Carbon Gravel Bike
    Mondraker Arid Carbon Gravel Bike
    Mondraker Arid Carbon Gravel Bike
    Mondraker Arid Carbon Gravel Bike
    Mondraker Arid Carbon Gravel Bike
    Mondraker

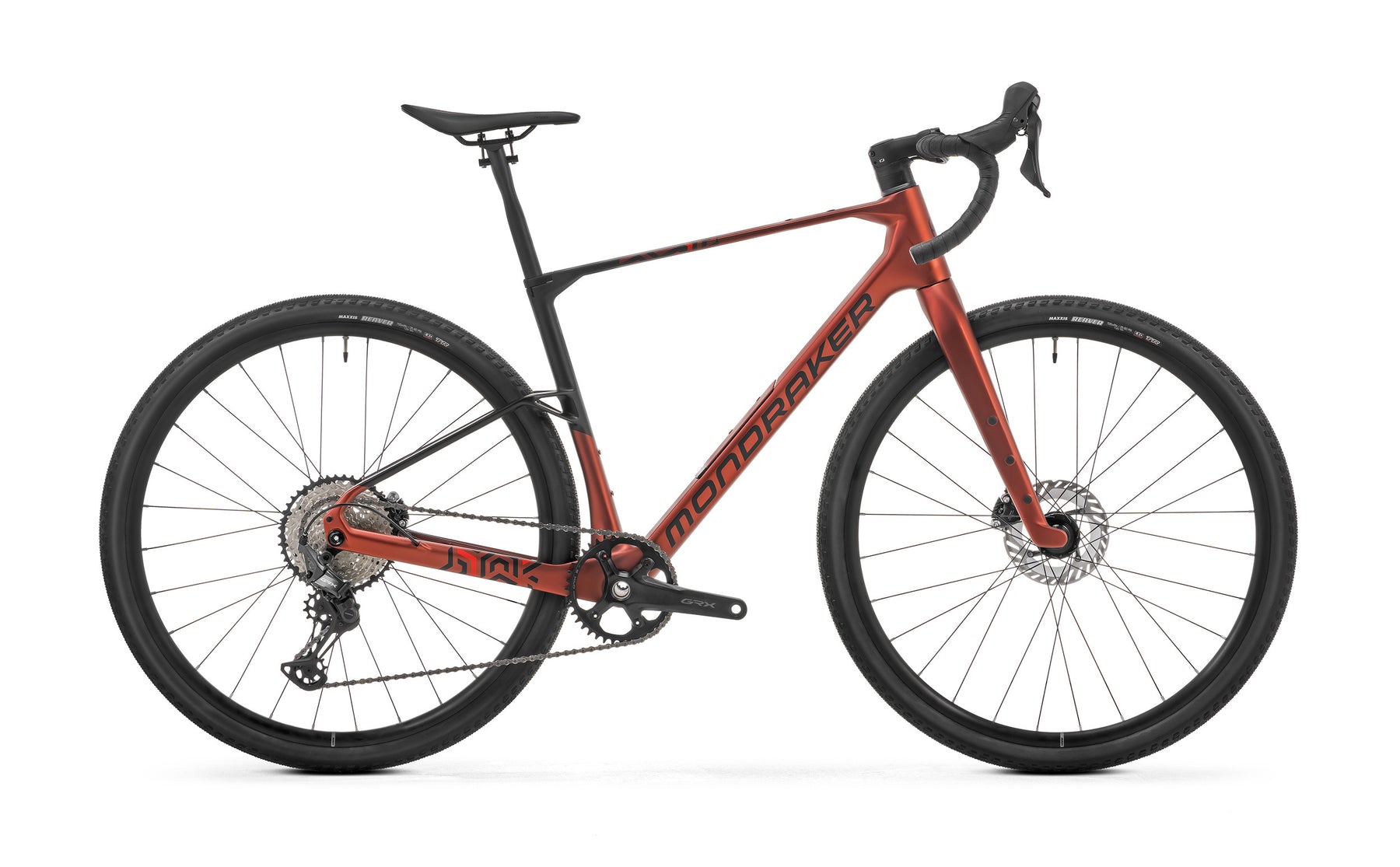

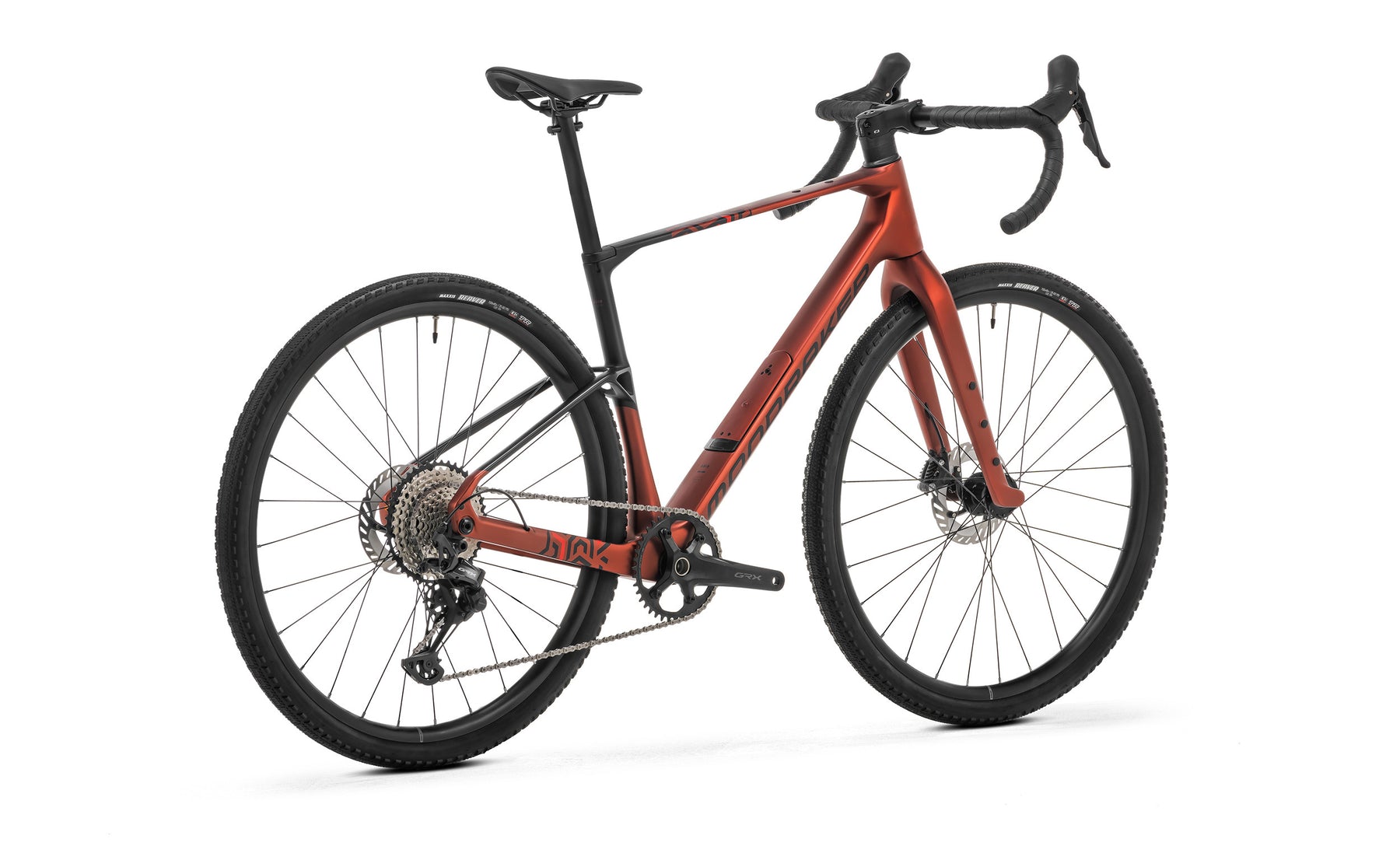

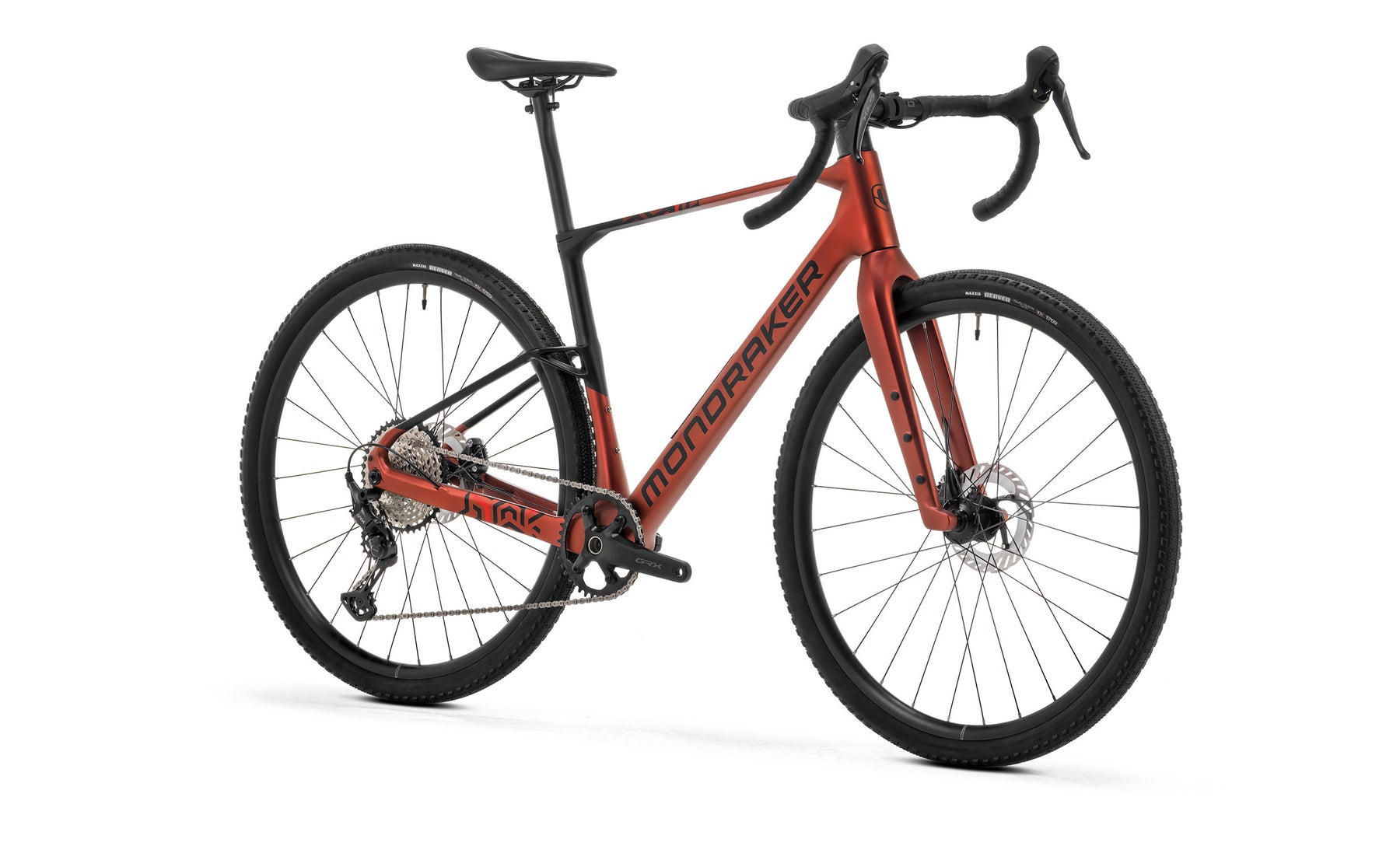

    Mondraker Arid Carbon Gravel Bike

    £3,199.00
    /
    Tax included. Shipping calculated at checkout.

    ARID CARBON: ARID + SHIMANO


    Arid Carbon is the base model and is the only build to come with a Shimano drivetrain and brakes. The Shimano gravel-specific GRX RX-610 groupset with a 40-tooth chainring and 12-speed 10-45 cassette keeps shifting smooth and sharp, and Mavic Allroad Disc 25mm wheels come fitted with Maxxis 45mm Reaver EXO 120TPI tyres to offer grip and low rolling resistance at the same time. Available in the stunning Earth Red / Black / Flame Red paint scheme.

    Components

    Technical specs

    • frame

      Frame

      Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.


      sizes

      Sizes

      S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

    • fork

      Fork

      Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork


      headset

      Headset

      Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.

    • stem

      Stem

      Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm


      handlebar

      Handlebar

      OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm

    • grips

      Grips

      OnOff HEX Bartape


      seatpost

      Seatpost

      Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm

    • saddle

      Saddle

      FIZIK Terra Argo X5 140mm


      front brake

      Front brake

      Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad

    • rear brake

      Rear brake

      Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad


      brake lever

      Brake lever

      Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever.

    • rims

      Rims

      Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear


      spokes

      Spokes

      Mavic Steel double butted flat spokes

    • front hub

      Front hub

      Mavic, 12x100mm, IS 6 bolts


      rear hub

      Rear hub

      Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub

    • front tire

      Front tire

      Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead


      rear tire

      Rear tire

      Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

    • crankset

      Crankset

      Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7


      rings

      Rings

      Shimano 40T, direct mount, steel

    • bottom bracket

      Bottom bracket

      Token T47 BSA sealed bearings, 85,5mm


      chain

      Chain

      Shimano SLX M7100, Quick link

    • rear derrailleur

      Rear derrailleur

      Shimano GRX RX-822-GS, 12s


      shift levers

      Shift levers

      Shimano GRX RX-610 dual control, alloy lever

    • casette

      Casette

      Shimano SLX M7100, hiperglide+,10-45, 12s


      derailleur hanger

      Derailleur hanger

      Sram UDH

    • others

      Others

      Carry-On Bags System


      weight

      Weight

      9,7 kg



      MONDRAKER CARRY-ON


      ARID lets you take your hand luggage without paying extra for it. The downtube is designed as a compartment to store up to 3 custom-made bags in 3 different sizes. Only you get to decide what to take with you as there are no cabin restrictions nor security checkpoints in sight. Clothing, food, tools, or your passport if you’re going to be crossing borders on your ARID. The frame design is so spectacular that we didn’t want to spoil it with gubbins; nothing more than mud or dust should be hitching a lift on this ride.



      Geometry

      Frame size
      		S M M/L L
      A Seattube length 410 mm 450 mm 480 mm 510 mm 540 mm
      B Toptube length 520 mm 550 mm 580 mm 600 mm 630 mm
      C Bottom bracket drop -75 -75 -75 -75 -75
      D Bottom bracket height 269 mm 269 mm 269 mm 269 mm 269 mm
      E Chainstay length 425 mm 425 mm 425 mm 425 mm 425 mm
      F Seat tube angle 73° 73° 73° 73° 73°
      G Effective seattube angle 74° 74° 74° 74° 74°
      H Headtube angle 70° 70° 70° 70° 70°
      I Fork Offset 45 mm 45 mm 45 mm 45 mm 45 mm
      J Wheelbase 1003 mm 1035 mm 1067 mm 1089 mm 1121 mm
      K Headtube length 100 mm 125 mm 145 mm 175 mm 200 mm
      L Reach 363 mm 386 mm 411 mm 423 mm 446 mm
      M Stack 548 mm 572 mm 591 mm 619 mm 642 mm
      N Stem Length 60 mm 70 mm 70 mm 80 mm 90 mm
      O Fork Height 420 mm 420 mm 420 mm 420 mm 420 mm
