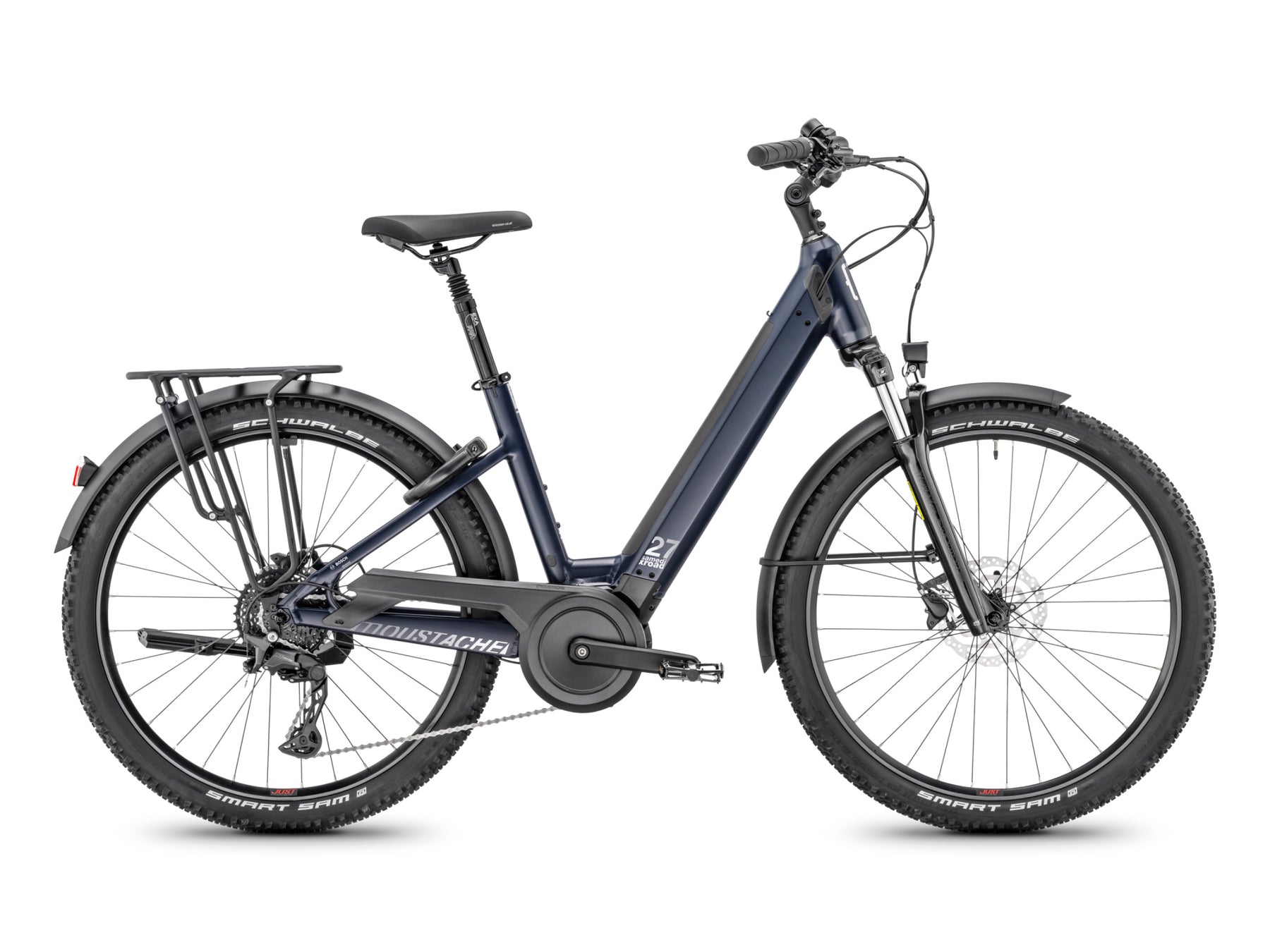

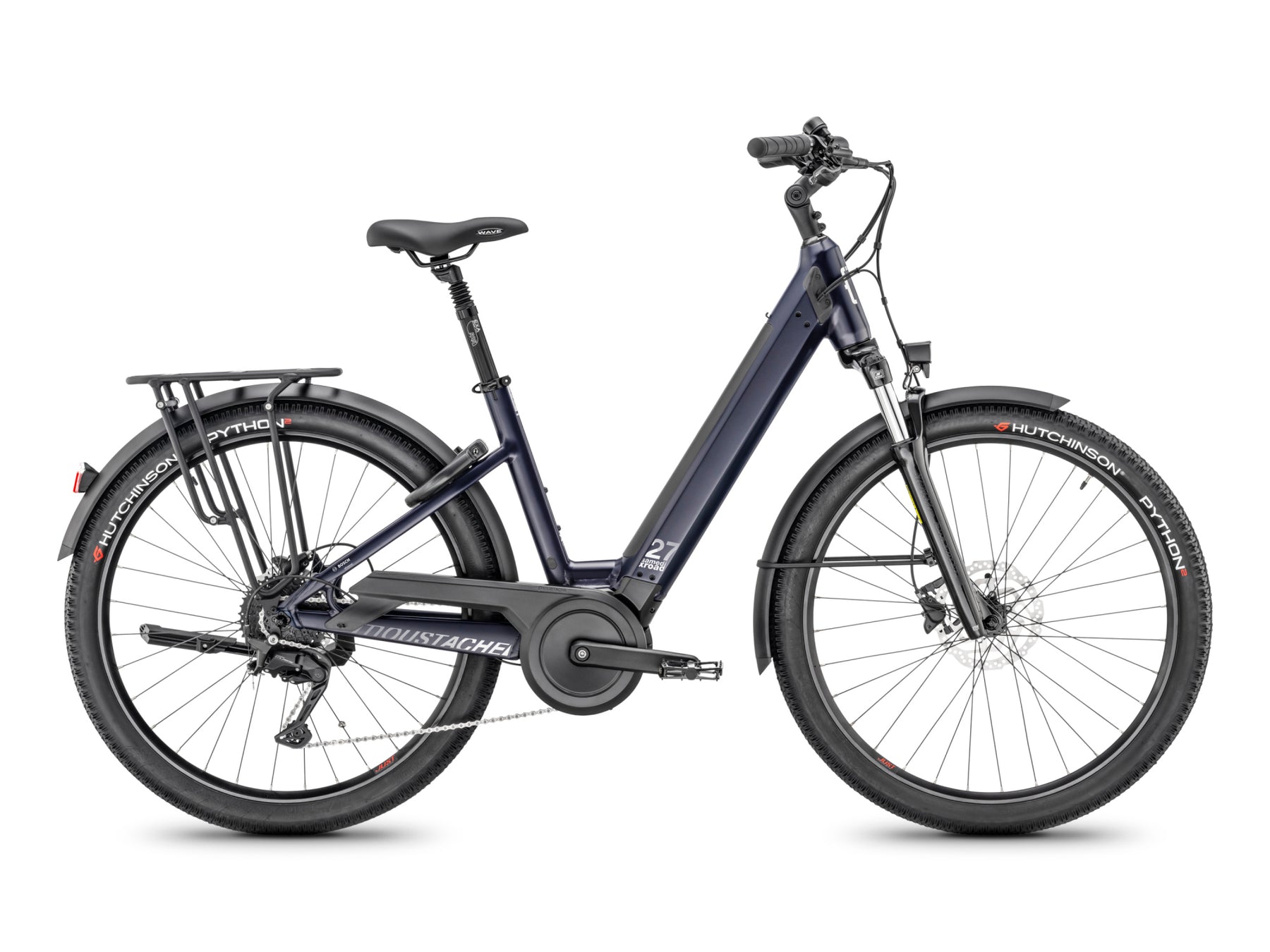

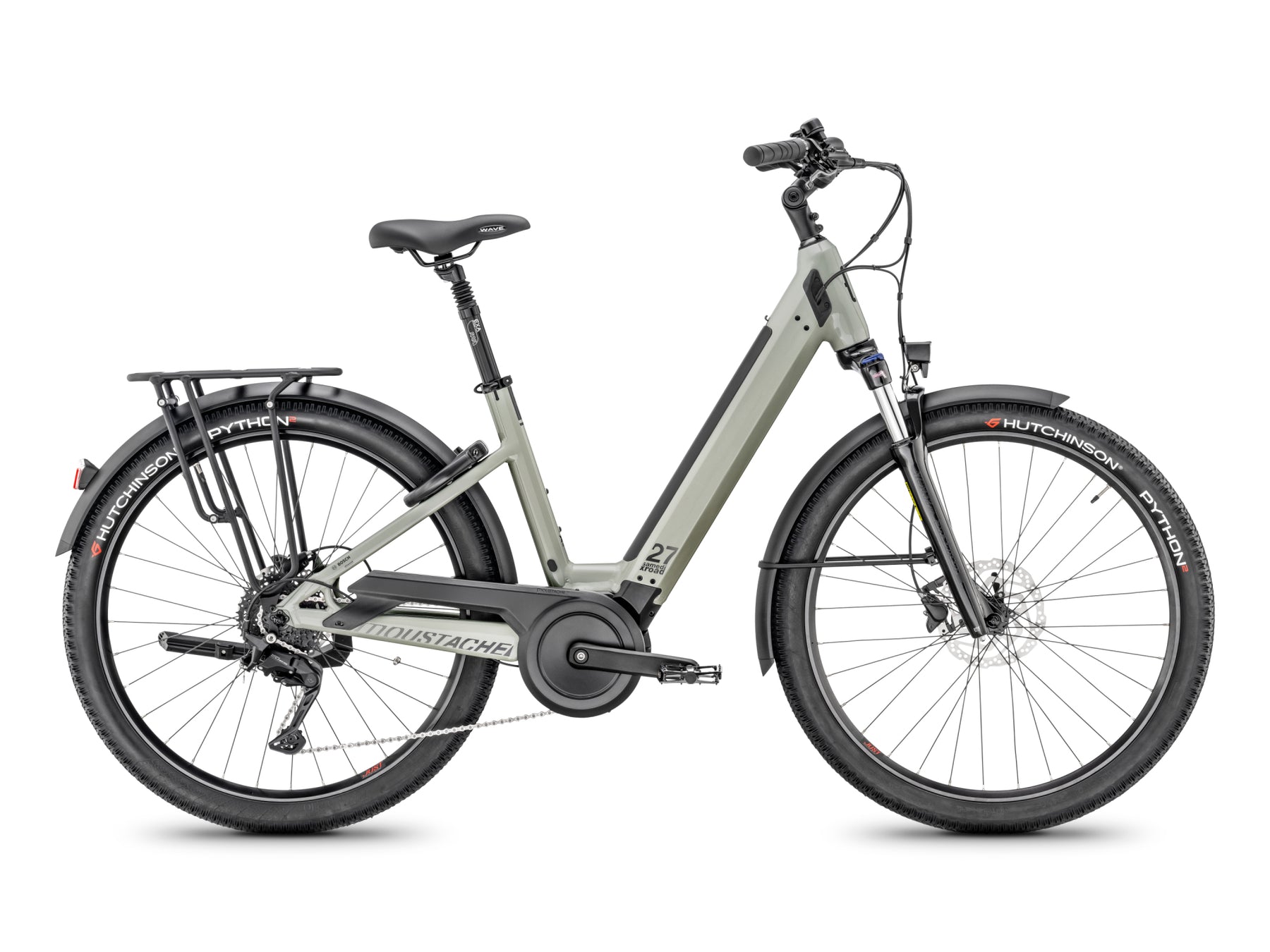

2025 Moustache Samedi 27 XRoad 4 Ebike 500WH

Moustache

2025 Moustache Samedi 27 XRoad 4 Ebike 500WH

£3,299.00 £2,999.00 Save £300.00

Tax included. Shipping calculated at checkout.

As comfortable on country paths as in the heart of the urban jungle, more powerful than ever and just as solidly equipped, the Samedi 27 Xroad 4 is also connected, offering new features! For example, use the navigation function, enhance theft protection, customize the assistance modes and screen displays to your preferences, or unlock your e-bike via the screen.

Frame

Frame - Xroad Open, 6061 T4-T6 alloy, variable thickness hydroformed tubes, Bosch PowerTube battery integration (vertical), integrated cable routing

Suspensions

Fork - SR Suntour, XCM32-ATB, NLO, preload adjustment & lockout function, 100mm travel

Motor system

Motor - Bosch, Performance Line, 250W, Smart System, 75Nm

Battery - Bosch, PowerTube 500Wh, vertical, Smart System

Autonomy - 125km

Charger - Bosch, 2Ah

Remote - Bosch, Purion 200, Smart System, compact, color screen, navigation, « Walk assist »

Transmission

Rear Derailleur - Shimano, CUES, RD-U6020, 10-speed

Chainring - Narrow-Wide, 40 teeth

Cassette - Shimano, CUES, CS-LG300 10-speed, 11-39T

Chain - Shimano, CN-LG500, 120 links

Shifter - Shimano, CUES, SL-U6000-10R, 10-speed

Cranks - Moustache, aluminium, 170mm moteur Gen3

Brakes

Front brake - Shimano, MT200 or Alhonga HJ-472, hydraulic disc brake

Rear Brake - Shimano, MT200 or Alhonga HJ-472, hydraulic disc brake

Front Rotor - Shimano, 180mm or Alhonga, 180mm

Rear Rotor - Shimano, 160mm or Alhonga, 160mm

Wheels

Front tyre - Schwalbe, Smart Sam, 27.5x2.25

Front Hub - Shimano, 32H, 9x100mm, QR (Quick Release)

Rear Hub - Shimano, 32H, 9x135mm, QR (Quick Release)

Front rim - Moustache, asymmetric, alloy 6061E, welded, 32 holes, 27.5", internal width 23mm

Rear rim - Moustache, asymmetric, alloy 6061E, welded, 32 holes, 27.5", internal width 23mm

Cockpit

Saddle - Selle Royal, Essenza + moderate

Seatpost - Suspension, alloy, 31.6mm, 350mm, 40mm travel

Seatclamp - Moustache, alloy, 34.9mm

Handlebar - Moustache, ergonomic, alloy, 680mm, 25° backsweep

Stem - Moustache, alloy, adjustable, 90mm

Headset - FSA, No 57B

Grips - Ergonomic, dual-density

Equipment

Front light - AXA, NXT, 30 lux, powered by main battery

Rear light - Spanninga, Presto2Guard, powered by main battery

Lock - AXA, Block XXL, same key for framelock & battery lock

Kickstand - Moustache, adjustable

Mudguard - Moustache, alloy, double wall design, w/alloy stays

Carrier - Moustache, alloy, removable QL3 lateral fixation, MIK HD platform

Pedals - alloy platform with reflectors

Features

Weight - 25.9kg

GVWR - 135kg

Warranty

Warranty - 5 years frame and fork Moustache Bikes - 2 years motor, battery

Mondraker

Mondraker Arid Carbon Gravel Bike

£3,199.00

Tax included. Shipping calculated at checkout.

ARID CARBON: ARID + SHIMANO

Name: 2025 Moustache Samedi 27 XRoad 4 Ebike 500WH
Brand: Moustache
Price: 2999.0 GBP
Availability: InStock

Arid Carbon is the base model and is the only build to come with a Shimano drivetrain and brakes. The Shimano gravel-specific GRX RX-610 groupset with a 40-tooth chainring and 12-speed 10-45 cassette keeps shifting smooth and sharp, and Mavic Allroad Disc 25mm wheels come fitted with Maxxis 45mm Reaver EXO 120TPI tyres to offer grip and low rolling resistance at the same time. Available in the stunning Earth Red / Black / Flame Red paint scheme.

Components

Technical specs

Frame

Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.

Sizes

S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork

Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset

Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem

Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

Handlebar

OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
Grips

OnOff HEX Bartape

Seatpost

Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle

FIZIK Terra Argo X5 140mm

Front brake

Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Rear brake

Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad

Brake lever

Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever.
Rims

Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear

Spokes

Mavic Steel double butted flat spokes
Front hub

Mavic, 12x100mm, IS 6 bolts

Rear hub

Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub
Front tire

Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Rear tire

Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset

Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7

Rings

Shimano 40T, direct mount, steel
Bottom bracket

Token T47 BSA sealed bearings, 85,5mm

Chain

Shimano SLX M7100, Quick link
Rear derrailleur

Shimano GRX RX-822-GS, 12s

Shift levers

Shimano GRX RX-610 dual control, alloy lever
Casette

Shimano SLX M7100, hiperglide+,10-45, 12s

Derailleur hanger

Sram UDH

Others

Carry-On Bags System

Weight

9,7 kg

MONDRAKER CARRY-ON

ARID lets you take your hand luggage without paying extra for it. The downtube is designed as a compartment to store up to 3 custom-made bags in 3 different sizes. Only you get to decide what to take with you as there are no cabin restrictions nor security checkpoints in sight. Clothing, food, tools, or your passport if you’re going to be crossing borders on your ARID. The frame design is so spectacular that we didn’t want to spoil it with gubbins; nothing more than mud or dust should be hitching a lift on this ride.

Geometry

Frame size		S	M	M/L	L
A	Seattube length	410 mm	450 mm	480 mm	510 mm	540 mm
B	Toptube length	520 mm	550 mm	580 mm	600 mm	630 mm
C	Bottom bracket drop	-75	-75	-75	-75	-75
D	Bottom bracket height	269 mm	269 mm	269 mm	269 mm	269 mm
E	Chainstay length	425 mm	425 mm	425 mm	425 mm	425 mm
F	Seat tube angle	73°	73°	73°	73°	73°
G	Effective seattube angle	74°	74°	74°	74°	74°
H	Headtube angle	70°	70°	70°	70°	70°
I	Fork Offset	45 mm	45 mm	45 mm	45 mm	45 mm
J	Wheelbase	1003 mm	1035 mm	1067 mm	1089 mm	1121 mm
K	Headtube length	100 mm	125 mm	145 mm	175 mm	200 mm
L	Reach	363 mm	386 mm	411 mm	423 mm	446 mm
M	Stack	548 mm	572 mm	591 mm	619 mm	642 mm
N	Stem Length	60 mm	70 mm	70 mm	80 mm	90 mm
O	Fork Height	420 mm	420 mm	420 mm	420 mm	420 mm

Mondraker

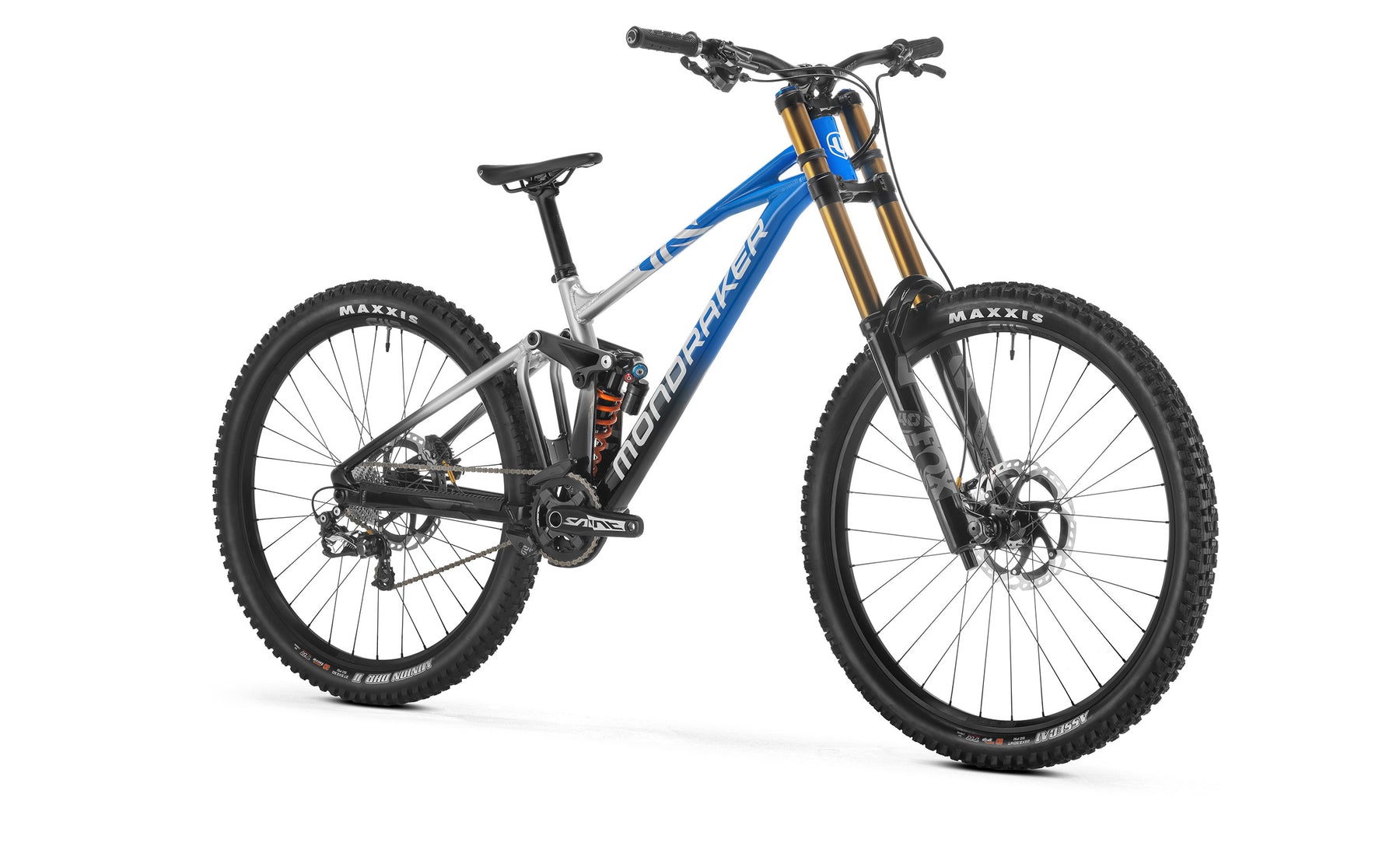

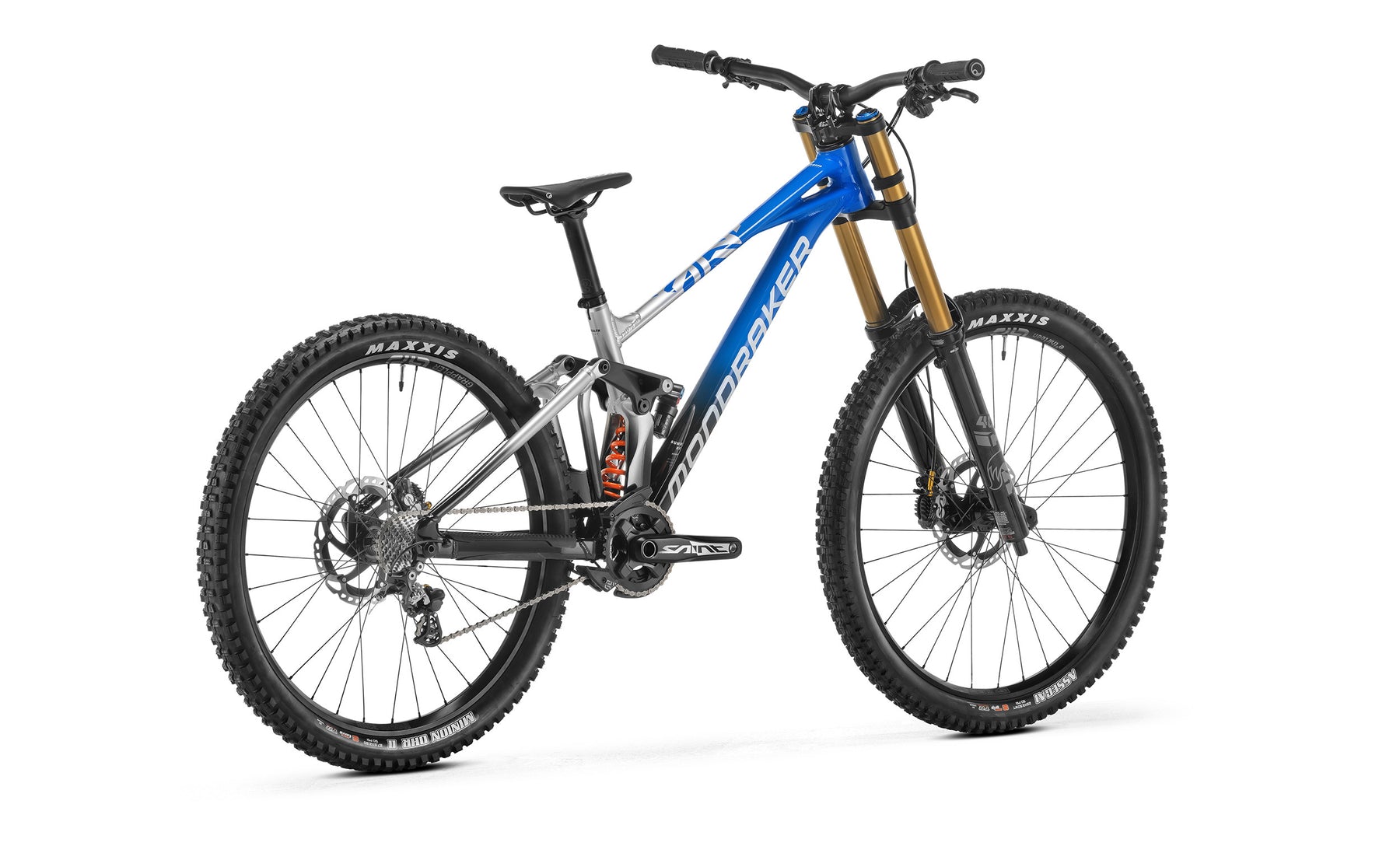

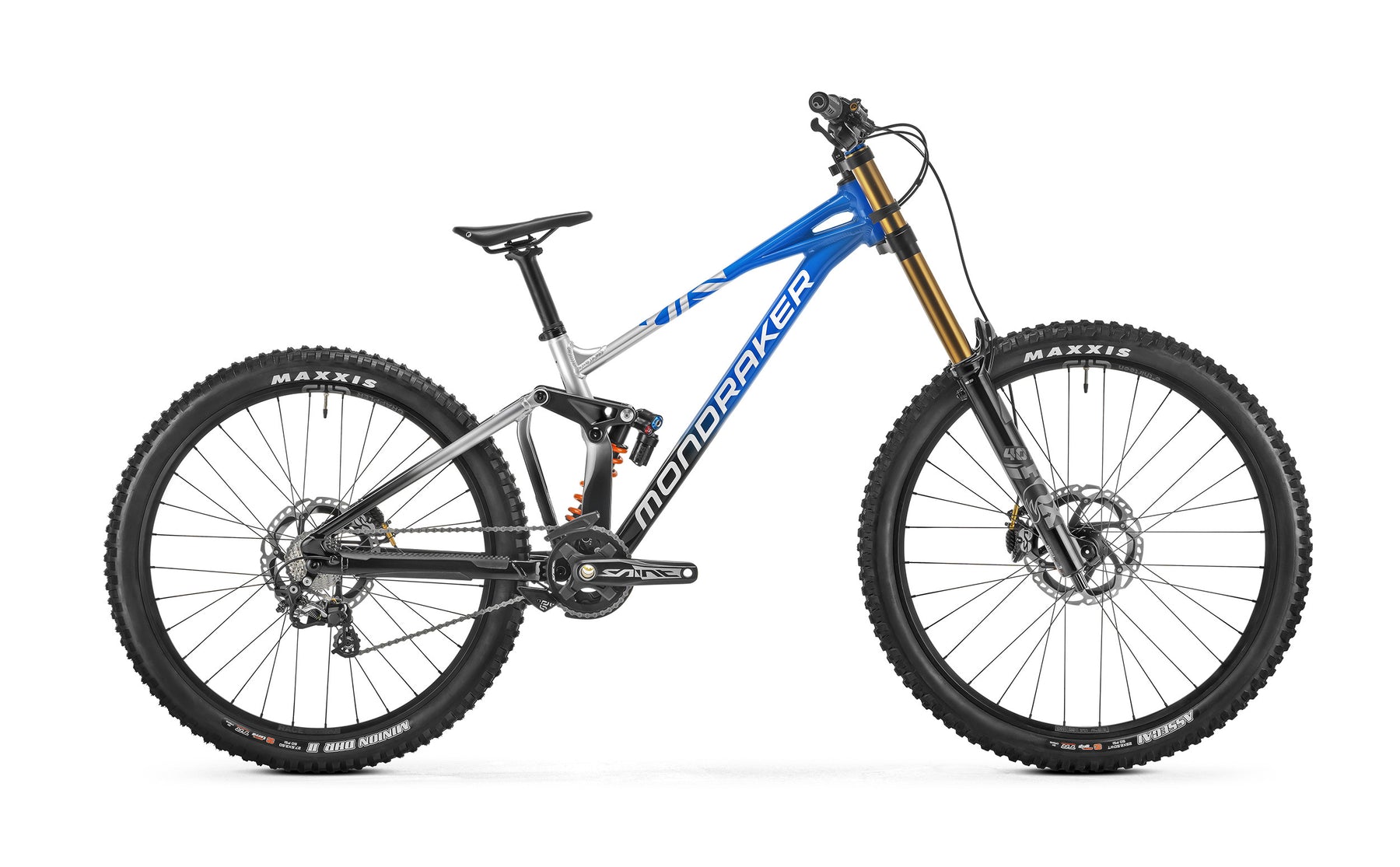

2025 Mondraker Summum RR Mullet

£6,499.00

Tax included. Shipping calculated at checkout.

Our DNA comes from DH racing, there’s no denying it and we’re proud of it. DH is the Formula 1 of mountain biking. It’s where prototypes are put through the wringer, hammered by the tracks and the riders. That’s why at Mondraker we have a top-level international team: the Mondraker Factory Racing, which includes world-class riders such as Dakotah Norton and Ronan Dunne. Our DH bikes will continue to be available as carbon or aluminium framed versions, depending on rider preference.

Components

Technical specs

Frame

Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit

Sizes

S / M / L / XL MX
Rear shock

Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CX004 compression, ECR012 rebound Rezi BX001. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork

Fox 40 29 Float FIT GRIP X2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Onoff ZS56/ZS56, 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm
Stem

Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips

Ergon GDH Team black

Seatpost

Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
Saddle

Ergon SM10 DH Black

Front brake

Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
Rear brake

Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler

Brake lever

Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
Rims

e*thirteen Grappler Race DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub

e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Dissector 27''5x2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset

Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm

Rings

36T, aluminum, BCD 104
Bottom bracket

Shimano 83mm

Chain

Shimano HG95, 10s
Front derrailleur

e*Thirteen Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

Rear derrailleur

Shimano Saint RD-M820-SS, 10s, Shadow+, short cage
Shift levers

Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release

Casette

Shimano CS-HG500-10, 11-25T, 10s

Derailleur hanger

Mondraker M068

Others

*Geometry kit included: +-1º / +-2º headset cups

Frame size		S	M	L
A	Seattube length	400 mm	400 mm	400 mm	400 mm
B	Toptube length	576 mm	596 mm	621 mm	646 mm
C	Bottom bracket drop	-5 mm	-5 mm	-5 mm	-15 mm
D	Bottom bracket height	350 mm	350 mm	350 mm	350 mm
E	Chainstay length	450 mm	450 mm	450 mm	450 mm
F	Seat tube angle	69°	69°	69°	69°
G	Effective seattube angle	77°	77°	77°	77°
H	Headtube angle	63.5°	63,5º	63,5º	63,5º
I	Fork Offset	58 mm	58 mm	58 mm	58 mm
J	Wheelbase	1256 mm	1270 mm	1301 mm	1326 mm
K	Headtube length	112 mm	112 mm	112 mm	112 mm
L	Reach	430 mm	450 mm	475 mm	500 mm
M	Stack	632 mm	632 mm	632 mm	632 mm

Ibis

2025 Ibis Cycles Oso 1.1 EMTB

£5,995.00

Tax included. Shipping calculated at checkout.

A whole new sport calls for a whole new bike. The full-carbon-fiber Oso features a dw-link rear suspension that optimizes efficiency and control, pairing 155mm of rear travel with 170mm up front. Powered by a Bosch Performance Line CX motor and a 750 Wh battery, the Oso delivers exceptional performance on any terrain—making every ride feel like it’s downhill both ways.

Lifetime frame warranty.
Lifetime bushing warranty.
Two year Bosch warranty.

Version	V1.1
Frame Material	Carbon Fiber
Wheel Size	29” up to 2.5" tires on L/XL, 27.5" up to 2.6" on S/M
Front Travel	170mm forks (approved to 190mm)
Rear Travel	155mm (approved to 170mm)
Boost Axles	148mm rear / 110mm front
Seatpost Diameter	31.6mm
Rear Brake	203mm post mount / 220mm max
Chainstay Length	S/M 439mm, L/XL 444mm
Bottom Bracket	NA
Chainline	55mm chainline, 182mm Q Factor
Chainguide	Compatible with Bosch Smart System Chain Guides (M/L/XL), Gen 4 (S)
Headset	ZS44 upper / ZS56 lower
Colors	Smokey Black or Grizzly Bronze
Sizes	S / M / L / XL
Frame Warranty	Lifetime
Bushing Warranty	Lifetime
Bosch Warranty	2 Years
Motor	Bosch Performance CX
Battery	Bosch 750 Wh Powertube (M/L/XL), 625 Wh Powertube (S)
Charger	Bosch Smart System Charger
Controller	Bosch Integrated top tube controller & bar mounted Bluetooth Mini Controller

Pick Your Size

The standover height on the Oso is very low for a bike with this much travel which makes fitting the bike easier. The small Oso is best in class for fitting riders in the 5'0" to 5'4" (152CM - 163CM) range. Large and extra large Oso frames are built around matching 29-inch wheels, while small and medium frames get the mixed-wheel treatment and shorter chainstays.

Specification

Component	Standard Component	Upgrade / Option
Fork	Fox Performance Series, Float 38, 170mm, 29”, 110mm x 15mm
Shock	Fox Performance Elite Series X2, 205mm x 60mm
Motor	Bosch Performance Line CX
Wheels	Blackbird Send Aluminium Rims, Ibis Hubs, SM-MD: 29”/27.5”, LG-XL: 29”
Front Tire	Maxxis Assegai, 29” x 2.4”, 3C MaxxGrip, DD, TR
Rear Tire	Maxxis Minion DHR II, 29” x 2.4”, 3C MaxxGrip, DD, TR Size SM–MD comes with a 27.5x2.4" rear tire.
Brakes	Shimano XT, M8120, 4 piston
Rotors (F/R)	Shimano SM-RT66, 220mm
Crankset	SRAM X1 E-MTB, 34t Steel Ring
Rear Derailleur	SRAM GX Eagle Transmission
Shifter	Eagle AXS Controller
Cassette	SRAM GX XS 1275 Eagle Transmission 10-52
Chain	SRAM GX Eagle Transmission
Chain Guide	Ibis Top Guide
Headset	Cane Creek 40 ZS44/ZS56
Grips	Lizard Skins Charger Evo Single Clamp Lock-On
Handlebar	Blackbird HiFi Carbon, 31.8mm, 30mm Rise, 800mm
Stem	Ibis 31.8mm S–M: 40mm, L–XL: 50mm
Seatpost	Bike Yoke Revive Dropper 31.6mm SM:125mm, MD: 160mm, LG: 185mm, XL: 213mm
Saddle	SDG Bel-Air, V3

Geometry

Nominal Size		SM	MD	LG	XL
Seat Tube Length	A	394	415	415	427
Top Tube Length	B	573	607	638	669
Head Tube Length (4mm stack of lower cup not included)	C	90	106	122	139
Chainstay Length	D	439	439	444	444
Seat Tube Angle	E	77°	77°	78°	79°
Head Tube Angle	G	64°	64°	64°	64°
Wheelbase	H	1206	1242	1294	1341
BB (L/XL with Maxxis Minion 29x2.4WT tires, S/M with 27.5x2.4WT rear tire).		341	341	340	340
BB Drop	K	31	31	31	31
Stack	I	621	635	650	665
Reach	J	430	460	500	540
Saddle Height	F	655	705	765	820
Standover		677	714	729	731
Trail		132	132	132	132

Mondraker

2025 Mondraker Dune R Light EMTB

£6,799.00

Tax included. Shipping calculated at checkout.

DUNE R: THE ENTRY LEVEL BUILD

The entry level DUNE R gives up little to its more expensive siblings. A 170mm FOX 38 Float 3P Performance Grip fork keeps the front wheel in check while a Fox Float X Performance EVOL shock tames things at the back, SRAM supplies the GX Eagle rear mech and E.13 their E*Spec Plus cranks, ONOFF provide the Pija dropper post, SRAM the DB8 brakes and e*thirteen Grappler Core wheels with 30mm wide aluminium rims round things out.

Technical specs

Frame

Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock

Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Medium compression, medium rebound, air volume spacer 0.4
Fork

FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle

Fizik Terra Aidon Slim X5

Front brake

Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake

Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims

e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''''''''5 rear

Spokes

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset

e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain

Sram NX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle,12s
Shift levers

Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

Casette

Sram PG-1230, 11-50T, 12s
Derailleur hanger

Sram UDH

Weight

19,9 kg
Display

Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Battery

Bosch Compact Powertube 400Wh

Geometry

Frame size		S	M	L
A	Seattube length	380mm	420mm	450mm	490mm
B	Toptube length	600mm	620mm	645mm	665mm
C	Bottom bracket drop	-21/0mm	-21/0mm	-21/0mm	-21/0mm
D	Bottom bracket height	352mm	352mm	352mm	352mm
E	Chainstay length	445mm	445 mm	445mm	445mm
F	Seat tube angle	74,0º	74,0º	74,0º	74,0º
G	Effective seattube angle	77,5°	77,5°	77,5°	77,5°
H	Headtube angle	64º	64º	64º	64º
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1232mm	1260mm	1285mm	1309mm
K	Headtube length	100mm	110mm	130mm	140mm
L	Reach	445mm	465mm	485mm	505mm
M	Stack	621mm	630mm	648mm	658mm

Read less

Haibike

2025 Haibike AllMtn 4 EMTB

£4,199.00

Tax included. Shipping calculated at checkout.

Description

Summit thrills and valley fun in one ride. Our new ALLMTN 4 is bursting with fun, even when you’re aiming high. We’ve equipped this full-suspension all-mountain eMTB with a newly-developed aluminium frame, offering the perfect blend of weight savings, comfort and stiffness thanks to its unique design. The finely tuned component mix complements the experience: with the powerful Bosch Performance CX motor and 800Wh battery, plus an optional Range Extender, you can enjoy limitless long mountain tours. With 160mm front and 150mm rear travel, the descents are pure fun, and the Sram components ensure you're always in the right gear. In short, this is the ideal eMTB for those looking to experience the perfect mix of summit thrills and valley fun.

Specifications

Battery -Bosch InTube 800Wh

Battery brand - Bosch

Battery capacity - 800 Wh

Charger - Bosch Charger 4A

Display - Bosch Purion 200

E-bike system - Bosch

Maximum support speed - 25 km/h

Motor - Bosch Performance CX

Motor torque (nm) - 85 NmDrive

Cassette - Sram PG-1230 Eagle, HG

Chain - Sram Chain SX Eagle 12s

Crankset - Miranda Crius ISIS Crankarm 165 mm + SRAM T-Type Chainring 165

Derailleur Rear - Sram NX Eagle 12s

Frame - MTB Fully Aluminium Uni

Frame material - Aluminium

Frame shape - MTB Full Suspension

Gear - Sram Derailleur

Maximum loadable weight -135 kg

Number of gears - 12

Shifter Right - Sram Triggershift NX Eagle TriggerSuspension

Front Fork - Rockshox 35 Gold RL 160 mm

Shock - Rockshox Deluxe Select 205x65mm, Trunnion, DebonAir+

Travel - 160 mmComponents

Brake Rear - TRP Hydraulic Disc brake Slate EVO HD-M807, 203 mm

Front brake - TRP Hydraulic Disc brake Slate EVO HD-M807, 203 mm

Grip kind - VLG-1751D2, MTB Grips

Handgrip brand - Velo

Handlebar - Haibike TheBar++ Dia. 31.8 mm

Pedal - XLC VPE-527 MTB Alloy Pedal w. Reflector

Saddle - Selle Royal Vivo 1216HRN

Seatpost - Limotec Dropperpost A1H Dropper, Dia. 34.9 mm, Travel: 170 mmWheelset

Front wheel size - 29

Rear wheel size - 27.5

Rim - WTB ST i30 TCS 2.0 32H

Tyre - Continental Kryptotal-Fr, Trail Endurance 60-622

Geometry

Frame size	S 40	M 44	L 47	XL 49
Wheel Size	2927.5"	2927.5"	2927.5"	2927.5"
Body height (cm)	157-169	167-178	176-187	185-197
Seattube length (mm)	405	435	465	485
Toptube length (mm)	567	594	628	662
Headtube length (mm)	130	130	135	140
Seattube angle (deg)	76.3	76.3	76.3	76.3
Headtube angle (deg)	65	65	65	65
Stack (mm)	651	651	656	660
Reach (mm)	408	435	468	501
BB Drop (mm)	20	20	20	20
Wheelbase (mm)	1206	1233	1268	1303

Ex-Demo 2024 Mondraker Summum R Mullet Alloy Downhill Bike Small

Mondraker

Ex-Demo 2024 Mondraker Summum R Mullet Alloy Downhill Bike Small

£3,499.00 £2,995.00 Save £504.00

Tax included. Shipping calculated at checkout.

Ex-Demo 2024 Mondraker Summum R Alloy DH bike - Size Small - Custom Wrapped

Frame	Summum Mullet 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, MAX. capacity dual row Enduro bearings
Fork	Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
Rear Shock	Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Headset	ONOFF Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Stem	ONOFF Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Bars	ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Front Brake	Sram Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake	Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Lever	SRAM Code R, tool-free reach adjust
Front Mech	E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Rear Mech	SRAM GX DH, 7s, medium cage, X-actuation 1:1
Shifters	SRAM trigger GX DH 7s, X-actuation 1:1
Speed	7
Rims	e*thirteen LG1 Plus DH, IW29 29"/27.5" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes
Front Hub	e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub	e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
Spokes	e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front Tyre	Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Rear Tyre	Michelin DH34 27.5x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Seat Post	SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Saddle	SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Chainset	Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm. 34T, steel, X-SYNC
Bottom Bracket	SRAM DUB BSA, sealed bearings, 83mm
Chain	SRAM PC1110 11s, Powerlock
Cassette	SRAM PG 720 11-25T, 7s
Pedals	None

Mondraker

2025 Mondraker Trick 24

£1,349.00 £1,199.00 Save £150.00

Tax included. Shipping calculated at checkout.

START YOUR MONDRAKER JOURNEY WITH TRICK

You never forget the first time you rode a bike, just like you’ll never forget that first time you rode a Mondraker. That feeling you got from those first pedal strokes is indelible. The new Trick range, available in 16”, 20”, 24” and 26” sizes, will start a relationship with Mondraker that we’re sure will last you a lifetime.

ADULT TECH TO MAKE YOU FEEL LIKE A KID

The new Trick rewrites everything compared to the old Leader, as this year brings a fresh new frame design with a design language clearly influenced by our high-end adult bikes. Minimalistic frame tubes, straighter lines, and details such as the top tube flowing into the seat stays in an almost straight line, and nothing says ‘Mondraker’ more than the ‘window’ between the top tube, the down tube and the headtube now featured on the Trick too.

Components

Technical specs

Frame

Trick 24 6061 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, 12x142mm rear axle

Sizes

One size 310mm
Fork

X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Headset

FPD Dozer tapered internal 1048AS, 1-1/8" 1-1/2 15mm top cover + TJ3 top cap
Stem

MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 40mm

Handlebar

MDK XC 1.0, 6061 alloy, rise: 25mm, width: 650mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

Onoff Twin, 1lock-on

Seatpost

MDK XC, 6061 T6 alloy, diameter 31.6mm, length 300mm, offset 0mm
Saddle

SDG Fly JR

Front brake

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level, tooled reach adjust, lever pivot bushings
Rims

MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel
Front hub

DA210FS02, 15x100mm, sealed bearings, IS 6 bolts

Rear hub

DA210RSRA01 12x142mm, sealed bearings, IS 6 bolts, HG freehub
Front tire

Kenda Booster 24x2.4 single compound 30TPI, wire bead

Rear tire

Kenda Booster 24x2.4 single compound 30TPI, wire bead
Crankset

Samox DM 30T steel, 127mm

Rings

30T, steel
Bottom bracket

BSA, 73mm

Pedals

SDG Slater JR
Chain

Sram PC-1031, 10s, Powerlock

Rear derrailleur

MICROSHIFT ADVENT X-RDM6205GM 1X10
Shift levers

MICROSHIFT ADVENT SL-M9505-R 10s

Casette

MICROSHIFT CS-G104 11-48 BLACK

Derailleur hanger

UDH

Weight

11,7 kg

Geometry


	Frame size	Trick 24
A	Seattube length	310mm
B	Toptube length	510mm
C	Bottom bracket drop	-30mm
D	Bottom bracket height	285mm
E	Chainstay length	385mm
F	Seat tube angle	73º
G	Effective seattube angle	73º
H	Headtube angle	68º
I	Fork Offset	40mm
J	Wheelbase	979mm
K	Headtube length	100mm
L	Reach	341mm
M	Stack	553mm

Mondraker

2025 Mondraker Sly R EMTB

£5,299.00

Tax included. Shipping calculated at checkout.

IT’S ABOUT WHO YOU WANT TO BE

SLY belongs to each and every one of us. To you too. A new breed of ebike blending Stealth aluminium with a Bosch SX motor and a 400Wh battery. Providing a balanced power delivery to make you the master of your rides. It’s not about who you are when you’re riding an ebike. It’s about who you want to be. Introducing SLY. ONE SLY FITS ALL.

R AND RR: TWO BUILDS THAT DEFINE SLY

Sometimes less is more. We had that clear from the beginning when designing SLY. The two builds available are the R and the RR, and they both boast 4 piston brakes, all-new 2.5” Maxxis DHF/DHR II EXO+ tyres, 12 speed Eagle T-Type drivetrains, up to 210mm ONOFF Pija dropper posts, and 800mm handlebars. The R build comes with a 160mm fork with 35mm stanchions, while the RR has a burlier 160mm fork with 36mm stanchions. Both models come with the Bosch display, mounted on the handlebar. And the mini remote on the handlebar to switch between assist modes on the Bosch SX motor.

SLY R: ACCESS YOUR SLY

Access a world of SLY. Access the best cost performance out there.

The R build offers RockShox suspension with a Psylo Gold RC 160mm fork paired with a Rockshox Deluxe Select+ shock; SRAM 4 piston DB8 Stealth brakes to keep things firmly under control, and Mavic 29”, 30mm E-CrossRide 29 wheels for reliability and strength.

Our component brand ONOFF supplies the handlebar, grips and stem from its S3 range, while the S6 range offers up the Pija seatpost in lengths from 140mm to 210mm depending on frame size.

The SLY R comes in the spectacular Marlin Blue / Racing Silver / Obsidian Grey colourway.

Technical Specifications

Frame

6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock

Rockshox Deluxe Select+, 185x55mm, Trunnion top mount, 30x8mm bottom bushings

Shock settings

L compression, digressive rebound, 4 tokens
Fork

Rockshox Psylo Gold RC, 160mm, 3 Position, Debon Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle

Fizik Terra Aidon X5 145mm

Front brake

Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake

Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims

Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Crankset

e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram S1000 Eagle AXS T-Type, 12s
Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1270, 10-52T, T-Type, 12s
Weight

20,9 kg

Display

Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Battery

Bosch Compact Powertube 400Wh

Geometry

Frame size		S	M	M/L	L
A	Seattube length	380 mm	410 mm	435 mm	460 mm	490 mm
B	Toptube length	595 mm	615 mm	635 mm	660 mm	685 mm
C	Bottom bracket drop	-22 mm	-22 mm	-22 mm	-22 mm	-22 mm
D	Bottom bracket height	350 mm	350 mm	350 mm	350 mm	350 mm
E	Chainstay length	455 mm	455 mm	455 mm	455 mm	455 mm
F	Seat tube angle	74º	74º	74º	74º	74º
G	Effective seattube angle	77º	77º	77º	77º	77º
H	Headtube angle	64,5º	64,5º	64.5º	64,5º	64,5º
I	Fork Offset	44 mm	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1225 mm	1250 mm	1265 mm	1290 mm	1315 mm
K	Headtube length	120 mm	120 mm	130 mm	140 mm	150 mm
L	Reach	440 mm	460 mm	480 mm	500 mm	520 mm
M	Stack	633 mm	633 mm	642 mm	651 mm	660 m

Mondraker

2025 Mondraker Crafty Race EMTB

£5,799.00

Tax included. Shipping calculated at checkout.

CRAFTY

THE GAME IS OVER!

The game is over, welcome to a new generation of authentic e-Enduro. Without compromises, the new Crafty Race is a pure performance model, an authentic Enduro bike; With great suspension capability and amazing pedaling efficiency ... agile like no other 29” e-MTB thanks to its renewed Forward Geometry and, all sweetened with raw power of the fourth generation of the Bosch CX Race Motor system. Enjoy the real life.

Components

Technical specs

Frame

Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock

Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Shock settings

medium compression, medium rebound, air volume spacer 0.2
Fork

Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle

Ergon SM-10

Front brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Rear brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Brake lever

Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
Rims

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub
Front tire

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset

Race Face Aeffect-R ebike, 160mm

Rings

Race Face, 34T, steel, direct mount
Chain

Shimano XT M8100, 12s

Rear derrailleur

Shimano XT M8100, SGS, Shadow+
Shift levers

Shimano XT M8100, Rapid Fire Plus, 12s

Casette

Shimano XT M8100 10-51T Hyperglide+, 12s
Derailleur hanger

Mondraker M068

Weight

25,2 kg
Display

Purion 400 Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line CX-Race (25Km/h) GEN4 SMART SYSTEM

Battery

Bosch Powertube 750Wh

Geometry


	Frame size	S	M	L	XL
A	Seattube length	380mm	420mm	450mm	490mm
B	Toptube length	605mm	625mm	650mm	670mm
C	Bottom bracket drop	-25mm	-25mm	-25mm	-25mm
D	Bottom bracket height	350mm	350mm	350mm	350mm
E	Chainstay length	455mm	455mm	455mm	455mm
F	Seat tube angle	73.5°	73.5°	73.5°	73.5°
G	Effective seattube angle	76°	76°	76°	76°
H	Headtube angle	65.5°	65.5°	65.5°	65.5°
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1225mm	1245mm	1265mm	1285mm
K	Headtube length	110mm	110mm	130mm	130mm
L	Reach	450mm	470mm	490mm	510mm
M	Stack	622mm	622mm	640mm	640mm

Ibis

2024 Ibis Cycles HD6 GX Bike

£5,699.00 £4,999.00 Save £700.00

Tax included. Shipping calculated at checkout.

The HD6 is the evolution of one of the most successful enduro bikes in history. Designed with input from our Enduro World Cup team and building upon our award-winning Ripmo and HD lines, the HD6 features increased travel, a completely redesigned suspension layout, and mixed wheels.

GEOMETRY

The 29" front wheel, bolstered by 180mm of travel, assures stability, whereas the 27.5" rear wheel allows for additional maneuverability. The 165mm of travel skillfully manages any fallout. With a 64 degree head tube angle (one degree slacker than the current Ripmo), a BB height similar to Mojo HD5, and chainstay length identical to the current Ripmo (despite the 27.5" rear wheel), the bike maintains an equilibrium between agility and stability.

FIVE SIZES

In order to place every size rider in the same position over the rear wheel, the HD’s seat tube angles get steeper as frame size increases. With four sizes, this would have resulted in larger jumps in reach, so we added a fifth size. The smaller increments across five sizes means that you can find just the right size. We encourage riders to choose their bike size based on their desired reach and top tube measurements.

COIL COMPATIBLE

Our upper link suspension layout is progressive enough to be sensitive off the top, yet supportive enough for the biggest hits. It is also compatible with all coil shocks, for those longer race stages that can tax air shock performance.

DW-LINK

The suspension layout may be new, but it’s still DW-Link. The inherent efficiency means you don’t need an overdamped shock to climb well. Less shock damping allows the wheels to stay planted on the ground, providing more traction and that hover-bike feel that our frames are known for. The HD6 climbs with a finesse that defies its enduro race pedigree.

BUSHINGS

Tired of buying bearings each season? So were we. That's why we've strategically employed bushings where they're most effective and bearings elsewhere. The IGUS bushings in our lower link are not only lighter and stiffer, they're virtually maintenance-free. We believe so strongly in them, we back them with free lifetime replacement.

LIFETIME WARRANTY

If it's our fault, we'll fix it. Simple as that.

Hd6 geo

NOMINAL SIZE		SM	MD	XM	LG	XL
Seat Tube Length	A	400	400	406	450	470
Top Tube Length	B	585	610	630	655	685
Head Tube Length (4mm stack of lower cup not included)	C	81	86	91	100	115
Chainstay Length	D	435	435	435	435	435
Seat Tube Angle	E	76°	76°	76.5°	77°	77.5°
Head Tube Angle	G	64°	64°	64°	64°	64°
Wheelbase	H	1202	1228	1256	1288	1328
BB Height (with 2.5WT Maxxis Assegai tires)		345	345	356	345	345
BB Drop	K	30	30	30	30	30
Stack	I	621	625	630	638	651
Reach	J	430	454	480	508	541
Saddle height for seat tube angle	F	650	700	745	790	830
Standover	L	725	735	752	765	769
Trail		136	136	136	136	136
Fork Offset		44	44	44	44	44

COMPONENT	STANDARD COMPONENT	UPGRADE / OPTION
Fork	Fox Float 38 Factory Series, 180mm, 29”, 110x15
Shock	Fox Float X2 Factory Series with EVOL, 230mm x 65mm
Wheels	Blackbird Send Alloy 29/27.5
Tires (F/R)	Maxxis Assegai, 29” x 2.5” / Maxxis DHR, 27.5” x 2.4”
Brakes	SRAM Code RSC, 4 Piston
Rotors (F/R)	SRAM Centerline 200
Crankset	SRAM NX Eagle, DUB, 32T Alloy Ring
Bottom Bracket	SRAM DUB BSA
Rear Derailleur	SRAM GX Eagle
Shifter	SRAM NX Eagle
Cassette	SRAM XG 1275, 10-52T
Chain	SRAM NX Eagle
Chain Guide	MRP AMg SE
Headset	Cane Creek 40 ZS44/ZS56
Grips	Lizard Skin Charger
Handlebar	Ibis Aluminum, 780mm
Stem	Ibis 31.8mm S–M: 40mm, L–XL: 50mm
Seatpost	KS Rage-i Dropper 31.6mm S: 125mm, M: 150mm, XM: 170mm, L–XL: 190mm
Saddle	WTB Silverado, 142mm

Images may not show actual build kit content. Pricing and specifications subject to change without notice.

Mondraker

2024 Mondraker Raze Alloy Bike

£2,999.00 £1,999.00 Save £1,000.00

Tax included. Shipping calculated at checkout.

PERFECT FOR RIDERS WHO WANT A BIKE THAT OFFERS THE WHOLE PACKAGE AT A REASONABLE PRICE

Perfect for riders who want a bike that offers the whole package at a reasonable price. The RAZE is the trail bike to offer you the most amazing performance in its category thanks to Mondraker’s exclusive technologies: ALLOY STEALTH EVO, FORWARD GEOMETRY and ZERO SUSPENSION SYSTEM, and all without breaking the bank. Along with the other models in the range, whether carbon or aluminium, the RAZE builds on that same philosophy of enjoying both the ups and the downs thanks to its abundant capabilities at both activities. With 150mm of travel up front and 130mm at the rear, you'll be amazed at how versatile and fun it is. It is truly a bike for everything. The definitive quiver killer.

COMPONENTS

TECHNICAL SPECS

Frame

Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock

Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings

Shock settings

Light compression, light rebound, air volume spacer 0.6
Fork

RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem

ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

ONOFF Twin, 1lock-on, 135mm

Seatpost

ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle

MDK series PU 2023

Front brake

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims

MDK-EP1 29, 30mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel
Front hub

Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

Rear hub

Formula DHT148 Boost 12x148mm, sealed bearings, IS 6 bolts
Front tire

Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm

Rings

32T, steel, X-Sync 2
Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock
Rear derrailleur

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette

Sram PG-1210, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

15,9 kg

Geometry

FRAME SIZE		S	M	L
A	Seattube length	375 mm	4515 mm	445 mm	490 mm
B	Toptube length	594 mm	614 mm	638 mm	658 mm
C	Bottom bracket drop	-29 mm	-29 mm	-29 mm	-29 mm
D	Bottom bracket height	340 mm	340 mm	340 mm	340 mm
E	Chainstay length	435 mm	435 mm	435 mm	435 mm
F	Seat tube angle	72º	72º	72º	72º
G	Effective seattube angle	76.5º	76.5º	76.5º	76.5º
H	Headtube angle	65.5º	65.5º	65.5º	65.5º
I	Fork Offset	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1197 mm	1216 mm	1246 mm	1266 mm
K	Headtube length	100 mm	100 mm	120 mm	120 mm
L	Reach	450 mm	470 mm	490 mm	510 mm
M	Stack	623 mm	623 mm	641 mm	641 mm

Mondraker

2024 Mondraker Foxy R Alloy Bike

£4,699.00 £2,995.00 Save £1,704.00

Tax included. Shipping calculated at checkout.

Frame

Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock

Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings

Shock settings

C20 compression, R35 rebound
Fork

Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake

Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims

e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55

Rings

32T, CNC-machined alloy, X-SYNC 2
Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock
Rear derrailleur

Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette

Sram PG-1230, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

16,2 kg

Geometry

FRAME SIZE		S	M	L
A	Seattube length	375mm	415mm	445mmm	500mm
B	Toptube length	600mm	622mm	647mm	670mm
C	Bottom bracket drop	-22mm/-27mm	-22mm/-27mm	-22mm/-27mm	-22mm/-27mm
D	Bottom bracket height	350mm/345mm	350mm/345mm	350mm/345mm	350mm/345mm
E	Chainstay length	438mm/345mm	438mm/445mm	438mm/445mm	445mm
F	Seat tube angle	71º/70.5º	71º/70.5º	71º/70.5º	71º/70.5º
G	Effective seattube angle	77°/76.5º	77°/76.5º	77°/76.5º	77°/76.5º
H	Headtube angle	64.5º/64º	64.5º/64º	64.5º/64º	64,5º
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1210mm/1216mm	1233mm/1239mm	1260mm/1267mm	1286mm/1292mm
K	Headtube length	100mm	100mm	120mm	120mm
L	Reach	445mm/440mm	465mm/460mm	485mm/480mm	505mm/500mm
M	Stack	617mm	617mm	647mm	647mm

Frame

Suspensions

Motor system

Transmission

Brakes

Wheels

Cockpit

Equipment

Features

Warranty

Frame

Suspensions

Motor system

Transmission

Brakes

Wheels

Cockpit

Equipment

Features

Warranty

ARID CARBON: ARID + SHIMANO

Technical specs

MONDRAKER CARRY-ON

Technical specs

Pick Your Size

170mm Fork (583.7mm axle to crown)

DUNE R: THE ENTRY LEVEL BUILD

Technical specs

Description

Suspension

Motor system

Transmission

Brakes

Wheels

Cockpit

START YOUR MONDRAKER JOURNEY WITH TRICK

Technical specs

IT’S ABOUT WHO YOU WANT TO BE

R AND RR: TWO BUILDS THAT DEFINE SLY

CRAFTY CARBON R: ACCESS THE LATEST IN EVOLUTION

Technical specs

CRAFTY

THE GAME IS OVER!

Technical specs

GEOMETRY

FIVE SIZES

COIL COMPATIBLE

DW-LINK

BUSHINGS

LIFETIME WARRANTY

PERFECT FOR RIDERS WHO WANT A BIKE THAT OFFERS THE WHOLE PACKAGE AT A REASONABLE PRICE

TECHNICAL SPECS

Geometry

Free UK Delivery

Easy Returns

Free Bike Setup
