PLEASE EVERYONE, STAND UP AND WELCOME THE NEAT.
A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader.
A NEW CYCLE
Three years ago, we started a project with a mission. Just one. To create a new generation of ebikes that would redefine the current concept of mountain biking. A new category which would enhance the very best version of yourself as a rider, to make you faster, everywhere. Powerful yet silent. Stable yet agile. A mission we dubbed NEAT and which has led to the first Light e-MTB in our history. With this model we’re opening the doors to a new category with the TQ-HPR50 motor, an integrated removable 360W battery, a full carbon fibre frame and a ready to roll weight of under 18kg. Mission accomplished. Now it’s your turn. Mondraker NEAT.
The NEAT range shares the same carbon fibre frame but with three different builds to choose from: NEAT R, NEAT RR and NEAT RR SL. All three come with a Fox Float X shock and Fox 36 fork, 4 piston brakes and Maxxis Minion DHF and DHR tyres with EXO+ sidewalls.
The package is completed with an ebike specific wheel and tyre package, 4 piston brakes and the quietest and most advanced motor on the market: the TQ-HPR50, combined with an integrated removable 360Wh battery. We didn’t rush this project, but the results speak for themselves: The NEAT is here. The NEAT is a reality.
After several years of taking stock of the state of the market and deciding that it just didn’t convince us, we developed the NEAT project utilizing an innovative system of motor and battery, more than capable of satisfying the needs of this sector and with which we felt we could identify as riders. We understood that weight was a key factor for this new platform, but we couldn’t let it compromise the performance of the whole package, the suspension travel or the handling.
Mondraker has managed to merge the best of both worlds by blending our two category leading bikes: the Enduro FOXY CARBON and e-MTB Enduro CRAFTY CARBON. 2024 then, sees the arrival of NEAT. A model with unmistakable aesthetics, characteristics and identity which sets a benchmark in this new category.
DEFINING OUR LIGHT E-MTB
NEAT is our vision of what the Light e-MTB category should be, while bringing the character which defines all Mondraker bikes into the mix.
NEAT is the product of our desire to blur the line between traditional MTBs and full power eMTBs, creating a bike which truly offers the best of both worlds. A 150mm enduro bike with a 160mm fork, the lower limit travel for maximum performance. Light, but without sacrificing anything in the process.
NEAT is the expression of a new design concept. The layout is more angular, cleaner, especially around the headtube. This area, where the headtube joins both the top tube and the down tube, defines the identity of all Mondrakers, and expresses from this model on a new look for the brand.
The defining lightness of the frame (only 2300 grams) together with the redesigned swingarm which is lighter and more compact, make NEAT the lightest ever MTB ebike in the history of Mondraker, weighing in at under 18kg for the RR SL build.
THE BALANCED GEOMETRY OF NEAT
NEAT comes with category specific geometry and counts on the best that the FOXY CARBON and CRAFTY CARBON offer in their respective categories.
64.5º head angle. As slack as a FOXY CARBON in the LOW setting.
76.5º effective seat tube angle. 1º steeper than the FOXY CARBON.
450mm chainstays. 5mm shorter than the CRAFTY CARBON and 5mm longer than the FOXY CARBON.
BB height of 348mm (-25mm drop). The perfect height for an ebike of its class.
Reach of 450/470/495/515mm (S/M/L & XL). Reach figures inspired by the FOXY CARBON and CRAFTY CARBON.
| FRAME SIZE | S | M | L | ||
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 595mm | 615mm | 640mm | 660mm |
| C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom bracket height | 348mm | 348mm | 348mm | 348mm |
| E | Chainstay length | 450mm | 450mm | 450mm | 450mm |
| F | Seat tube angle | 72,6º | 72,6º | 72,6º | 72,6º |
| G | Effective seattube angle | 76.5° | 76.5° | 76.5° | 76.5° |
| H | Headtube angle | 64.5º | 64.5º | 64.5º | 64.5º |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1235mm | 1255mm | 1275mm | 1295mm |
| K | Headtube length | 110mm | 110mm | 130mm | 140mm |
| L | Reach | 450mm | 470mm | 495mm | 515mm |
| M | Stack | 626mm | 626mm | 642mm | 650 mm |
The TQ-HPR50 system comprises a very compact motor which we’ll talk about later on, a 360Wh removable internal battery located in the downtube, a 2” display fitted into the top tube and an optional 160Wh range extender. The whole system weighs in at 3.9Kg, 1850g the motor and 1830g the 360Wh battery. The optional TQ range extender weighs 950g.
Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. The optional range extender can increase that by up to 50%.
NEAT = ANY TYPE OF RIDER AND ANY TYPE OF RIDING
NEAT is a new category of bike for Mondraker. A category that was until now unrealised, falling between the flexibility of a FOXY CARBON and the capability of a CRAFTY CARBON. NEAT walks the perfect line between the two, for any type of rider and any type of riding.
-Riders who are making the move from a traditional mountain bike or who are just starting out on an ebike: NEAT lets you ride faster, farther, and descend with more aplomb and more safely than ever before, without sacrificing the feelings and handling of a traditional non-ebike MTB.
-Riders who are making the move from a full power ebike: NEAT is going to make your ride fleeter of foot, more agile, and faster reacting on climbs without giving up the traits of an ebike on the descents.

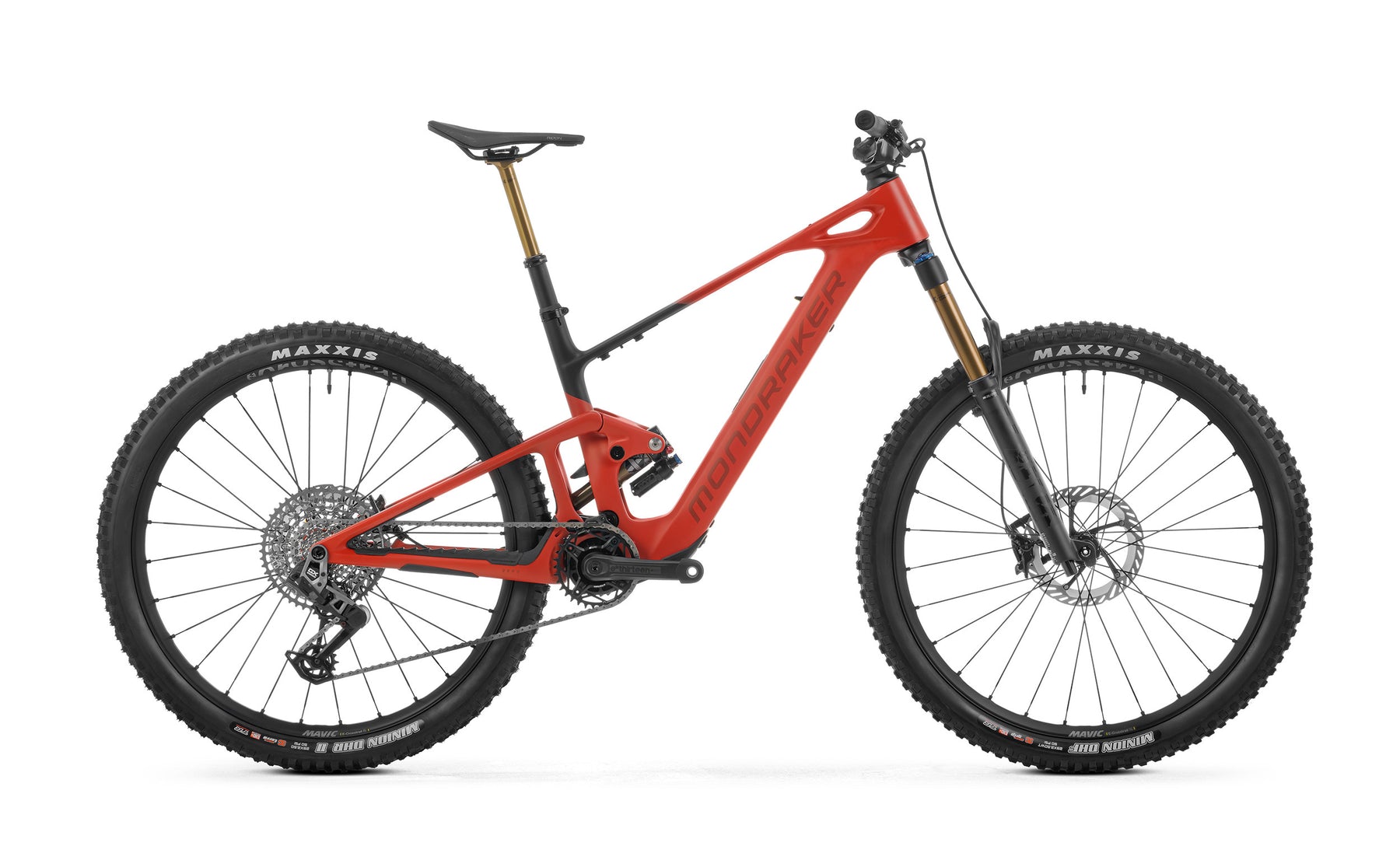

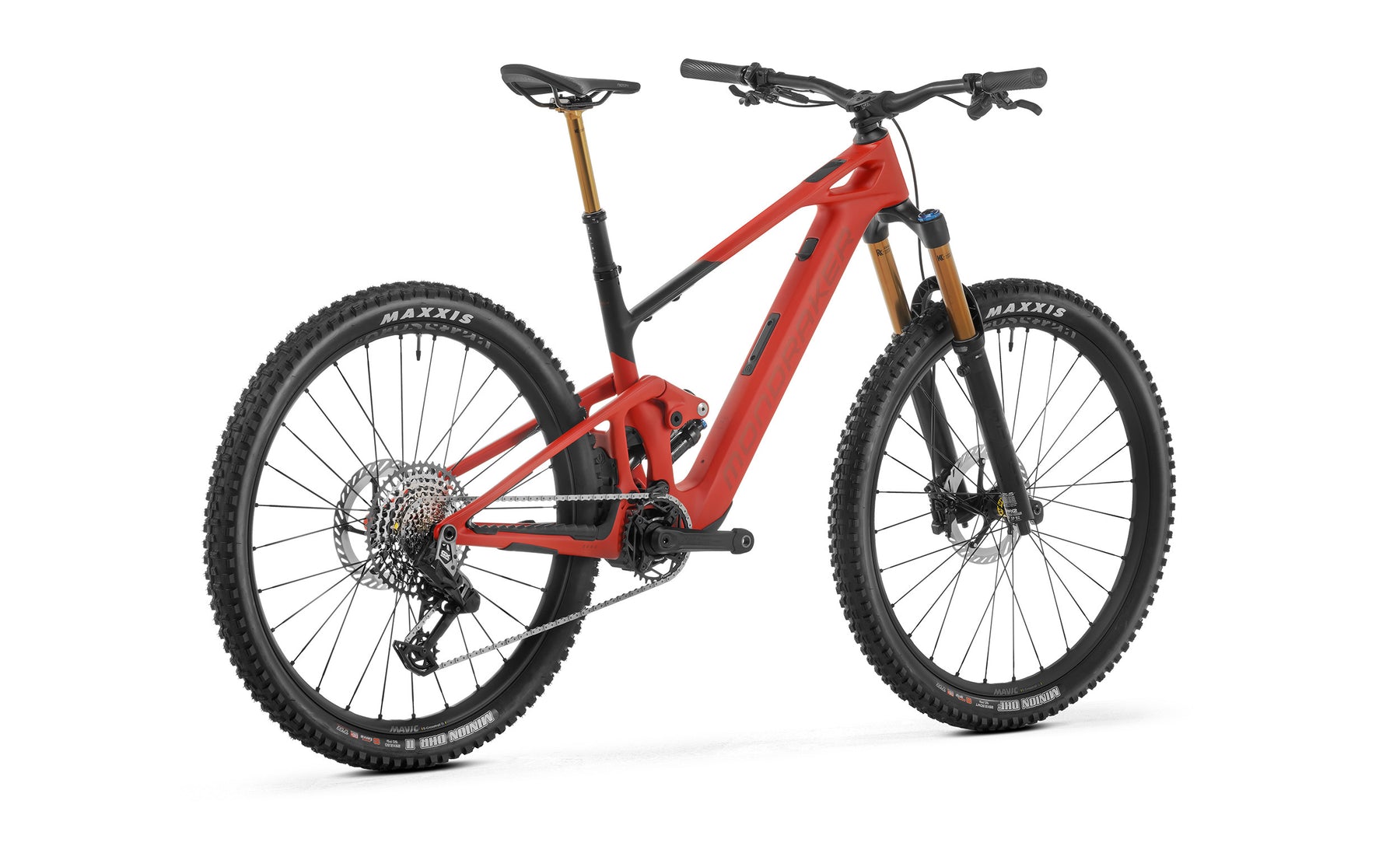

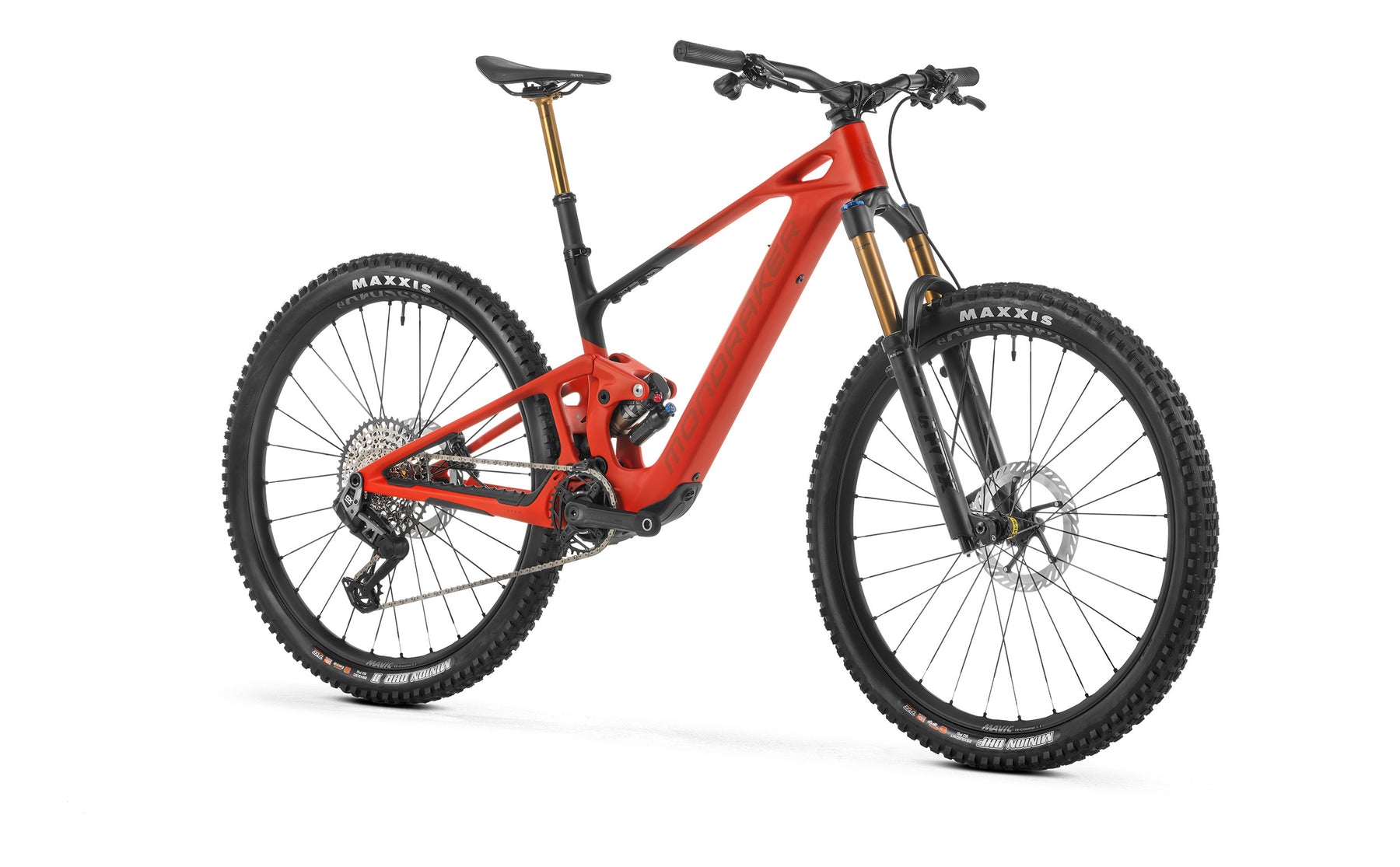

NEAT RR
The intermediate model in the range is the NEAT RR, with a Fox 36 29 Float GRIP2 Factory Kashima fork, SRAM GX Eagle AXS transmission, SRAM Level Bronze Stealth brakes, Fox Transfer Factory Kashima seatpost and Mavic E-DeeMax SL 29 wheels.
TECHNICAL SPECS
-
-
-
Frame
Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
-
Rear shock
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
-
Fork
Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
-
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
-
Grips
Onoff Forest, CNC lock-on, 135mm
Seatpost
Fox Transfer Factory Kashima internal, adjustable travel, Shimano SL-MT800-IL lever, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
-
Saddle
Fizik Terra Aidon Slim X5
Front brake
Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
-
Rear brake
Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Brake lever
Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
-
Rims
Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes
Mavic 28 straight-pull double butted spokes
-
Front hub
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
-
Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
-
Crankset
e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Rings
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
-
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram GX Eagle AXS T-Type,12s
-
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1275, 10-52T, T-Type, 12s
-
Others
Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight
18,7 kg
-
Display
TQ HPR display V01
Motor
TQ HPR-50
-
Battery
TQ HPR-50 360Wh integrated and removable
-
