Product details

The HD6 is the evolution of one of the most successful enduro bikes in history. Designed with input from our Enduro World Cup team and building upon our award-winning Ripmo and HD lines, the HD6 features increased travel, a completely redesigned suspension layout, and mixed wheels.

Images may not show actual build kit content. Pricing and specifications subject to change without notice.

Pick a line and Win

Max momentum Boost your speed on hard-packed and mixed terrain thanks to the new tread pattern inspired by the original MICHELIN DH 16 tyre.

Extra Grip Maximum grip to win races, even at low temperatures thanks to the MICHELIN Magi-X compound.

Puncture & pinch protection Optimal puncture and pinch protection specifically developed for Enduro World Cup riders and freeride legends.

Specification

Technical Information

Pick a line and Win

Max momentum Boost your speed on mixed and soft terrain thanks to the evolved MICHELIN DH 22 tread pattern.

Extra Grip Maximum grip to win races, even at low temperatures thanks to the MICHELIN Magi-X compound.

Puncture & pinch protection Optimal puncture and pinch protection specifically developed for DH World Cup riders and freeride legends.

Specification

Technical Information

•

  Frame

  Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard




  Sizes

  S: 380mm / M: 420mm / L: 450mm / XL: 490mm

•

  Rear shock

  RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings




  Shock settings

  Light compression, Linear rebound, 1 Token

•

  Fork

  RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload




  Headset

  Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

•

  Stem

  Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore




  Handlebar

  Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

•

  Grips

  Onoff Twin, 1lock-on, 135mm




  Seatpost

  Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

•

  Saddle

  MDK ebike black




  Front brake

  Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

•

  Rear brake

  Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads




  Brake lever

  Sram DB8, tool reach adjust, lever pivot bushings

•

  Rims

  Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes




  Spokes

  Mavic J-bend double butted, contactless lacing

•

  Front hub

  Mavic, Boost 15x110mm, IS 6 bolts




  Rear hub

  Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

•

  Front tire

  Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead




  Rear tire

  Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

•

  Crankset

  Race Face Aeffect ebike, 165mm




  Rings

  Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

•

  Chain

  Sram SX Eagle, 12s, Powerlock




  Rear derrailleur

  Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

•

  Shift levers

  Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click




  Casette

  Sram PG-1210, 11-50T, 12s

•

  Derailleur hanger

  Mondraker M068




  Weight

  25,4 kg

•

  Display

  Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller




  Motor

  Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM

•

  Battery

  Bosch Powertube 625Wh



  Geometry







  Frame size		S	M	L
  A	Seattube length	380mm	420mm	450mm	490mm
  B	Toptube length	605mm	625mm	650mm	670mm
  C	Bottom bracket drop	-25mm	-25mm	-25mm	-25mm
  D	Bottom bracket height	350mm	350mm	350mm	350mm
  E	Chainstay length	455mm	455mm	455mm	455mm
  F	Seat tube angle	73.5°	73.5°	73.5°	73.5°
  G	Effective seattube angle	76°	76°	76°	76°
  H	Headtube angle	65.5°	65.5°	65.5°	65.5°
  I	Fork Offset	44mm	44mm	44mm	44mm
  J	Wheelbase	1225mm	1245mm	1265mm	1285mm
  K	Headtube length	110mm	110mm	130mm	130mm
  L	Reach	450mm	470mm	490mm	510mm
  M	Stack	622mm	622mm	640mm	640mm

•

  Frame

  Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05




  Sizes

  S: 380mm / M: 420mm / L: 470mm / XL: 510mm

•

  Rear shock

  Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings




  Shock settings

  C20 compression, R35 rebound

•

  Fork

  Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40




  Headset

  Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

•

  Stem

  Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore




  Handlebar

  Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

•

  Grips

  Onoff Twin, 1lock-on, 135mm




  Seatpost

  Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

•

  Saddle

  SDG BEL-AIR 3.0, LPU foam, steel rails




  Front brake

  Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

•

  Rear brake

  Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads




  Brake lever

  Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

•

  Rims

  e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes




  Spokes

  e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

•

  Front hub

  e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts




  Rear hub

  e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

•

  Front tire

  Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead




  Rear tire

  Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

•

  Crankset

  Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55




  Rings

  32T, CNC-machined alloy, X-SYNC 2

•

  Bottom bracket

  Sram DUB BSA, sealed bearings, 73mm




  Chain

  Sram SX Eagle, 12s, Powerlock

•

  Rear derrailleur

  Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1




  Shift levers

  Sram Trigger SX Eagle, 12s, X-Actuation 1:1

•

  Casette

  Sram PG-1230, 11-50T, 12s




  Derailleur hanger

  Sram UDH

•

  Weight

  16,2 kg



  Geometry





  FRAME SIZE		S	M	L
  A	Seattube length	375mm	415mm	445mmm	500mm
  B	Toptube length	600mm	622mm	647mm	670mm
  C	Bottom bracket drop	-22mm/-27mm	-22mm/-27mm	-22mm/-27mm	-22mm/-27mm
  D	Bottom bracket height	350mm/345mm	350mm/345mm	350mm/345mm	350mm/345mm
  E	Chainstay length	438mm/345mm	438mm/445mm	438mm/445mm	445mm
  F	Seat tube angle	71º/70.5º	71º/70.5º	71º/70.5º	71º/70.5º
  G	Effective seattube angle	77°/76.5º	77°/76.5º	77°/76.5º	77°/76.5º
  H	Headtube angle	64.5º/64º	64.5º/64º	64.5º/64º	64,5º
  I	Fork Offset	44mm	44mm	44mm	44mm
  J	Wheelbase	1210mm/1216mm	1233mm/1239mm	1260mm/1267mm	1286mm/1292mm
  K	Headtube length	100mm	100mm	120mm	120mm
  L	Reach	445mm/440mm	465mm/460mm	485mm/480mm	505mm/500mm
  M	Stack	617mm	617mm	647mm	647mm

If you're looking for an Ebike that you can commute to work on in the morning and then take the path back through the forest on the way home for some fun then the Mondraker Prime is for you!

•

  Frame

  Prime Xtralite 6061 Fully Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor



  Sizes

  XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm



  Fork

  RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload



  Headset

  Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º



  Stem

  Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore



  Handlebar

  Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore



  Grips

  Onoff Twin, 1lock-on, 135mm



  Seatpost

  Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm



  Saddle

  MDK ebike black



  Front brake

  Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad



  Rear brake

  Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad



  Brake lever

  Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings



  Rims

  MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes



  Spokes

  CN round stainless steel



  Front hub

  Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

•

  Rear hub

  Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts



  Front tire

  Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead



  Rear tire

  Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead



  Crankset

  Race Face Aeffect ebike, 165mm



  Rings

  Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD



  Chain

  Sram SX Eagle, 12s, Powerlock



  Rear derrailleur

  Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1



  Shift levers

  Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click



  Casette

  Sram PG-1210, 11-50T, 12s



  Derailleur hanger

  Mondraker M068



  Weight

  22,5 kg



  Display

  Bosch Kiox 300 / Bosch Led Remote



  Motor

  Bosch Performance Line CX (25km/h) Smart System



  Battery

  Bosch Powertube 625Wh

PERFECT FOR RIDERS WHO WANT A BIKE THAT OFFERS THE WHOLE PACKAGE AT A REASONABLE PRICE

The SUMMUM CARBON R inherits all of the features from the CARBON RR

The GAME offers a Bosch Performance CX motor, that’s powerful and agile, with the Bosch Smart System and detachable integrated 750 Wh battery for more battery life and connectivity. This bike will take you everywhere, whatever the difficulty of the terrain or the gradient. Its geometry has been conceived to offer novice riders stability and comfort, and for more seasoned riders, to push their limits by widening the field of possibilities.

The Fox 38 Factory suspension fork coupled with the Fox Float X Factory rear shock, bestows 170 mm of travel to erase rough terrain with an efficiency and precision worthy of a World Champion.
The Shimano XT 12 speed rear mech guarantees you precise and reliable gear changing in all circumstances. To slow down the GAME 9 you can count on the Shimano XT M8120 4 piston brakes, which unite unparalleled biting power and comfort without forgetting ease of maintenance.
As for the 29" wheels with Tubeless Just_Moustache aluminum rims and ID360 Moustache by Mavic hubs, they have been specially developed by Moustache to provide the necessary grip and withstand the pressures of E-MTB.

 Frame

Game, 6061 T4-T6 alloy, w/160mm travel, Bosch PowerTube custom battery integration (horizontal), 12x148mm, Boost, motor cover w/cooling fins & chainguide



 Fork

FOX, Float 38 Factory, GRIP2 w/HSC/LSC/HSR/LSR, 170mm travel, 15x110mm Boost, 44mm offset, mini-fender compatible



 Shock

Fox, Float X, Factory, Kashima coating, 2 positions lever, rebound and compression adjustement, Moustache tune, Trunion mount, 205-65mm, 160mm travel



 Motor

Bosch, Performance Line CX, 250W, Smart System, 85Nm



 Battery

Bosch, PowerTube 625Wh or 750Wh, horizontal, Smart System



 Autonomy

97km ; 117 km



 Conditions

Maximum distance, calculated for a 70kg rider in ideal conditions.



 Charger

Bosch, 4Ah



 Display

Bosch, Kiox 300, Smart System, compact, color screen, customizable screens, Lock function (optional), « Walk assist »



 Remote

Bosch, LED remote Bluetooth



 Modes

Eco, Tour+, eMTB, Turbo



 Rear Derailleur

Shimano, XT, RD-M8100-SGS, 12-speed



 Chainring

Moustache, 34T, Narrow Wide



 Cassette

Shimano, SLX, CS-M7100 12-speed, 10-51T



 Chain

Shimano, CN-M6100, 12-speed, 120 links



 Shifter

Shimano, SLX, SL-M7100, 12-speed



 Cranks

Moustache, forged aluminium, 165mm



 Front brake

Shimano, XT BR-M8120, hydraulic disc, 4 pistons



 Rear Brake

Shimano, XT, BR-M8120, hydraulic disc, 4 pistons



 Front Rotor

Shimano, 220mm



 Rear Rotor

Shimano, 203mm



 Front Hub

Moustache by Mavic, 28H, Centerlock, 15x110mm, thru axle



 Rear Hub

Moustache by Mavic, 28H, ID360, 12x148mm, thru axle



 Rims

Moustache, asymmetric, alloy 6061E, welded, double wall, 28 holes, 29", internal width 30mm, mounted with Tubeless valves & flap, brass nuts with locking "Blue Nylon" insert



 Tyres

Maxxis, Assegai, 29x2.50, foldable, 3C MaxxTerra / EXO+ / TR (Tubeless Ready)



 Saddle

Moustache, Sport, steel rails



 Seatpost

KS, Rage-i, dropper-post w/ Shimano remote lever, 31.6mm, 125mm



 Seatpost travel

S: 125mm ; M: 150mm ; L: 170mm ; XL: 190mm



 Seatclamp

Moustache, alloy, 38.6mm



 Handlebar

Moustache, Just_Carbon, 780mm, 12mm rise, 9° backsweep, 4° upsweep



 Stem

Moustache, alloy, 3D forged, 40mm



 Headset

Acros, AZX-579, sealed bearings



 Grips

SB3, Race



 Lock

- / Bosch Connect Module (BCM) compatible, with eBike Alarm function



 Pedals

alloy platform with reflectors



 Warranty

5 years frame and fork Moustache Bikes - 2 years motor, battery



 Sizes

S (1,56 -1,72m) ; M (1,69 - 1,85m) ; L (1,82 - 1,98m) ; XL (1,95 - 2,11m)



 Colors

Black / Deep Olive glossy



 Weight

23,6 kg ; 24,2kg



 GVWR

140 kg

Geometry

	S	M	L	XL
Size (mm) - ST	390	420	450	480
User (estimated fitting size in m)	1,56 - 1,72	1,69 - 1,85	1,82 - 1,98	1,95 - 2,11
Top tube (horizontal measure in mm) - TT	590	620	645	670
Chainstay (mm) - RC	462	462	462	462
Head Tube (mm) - HT	100	110	130	140
Wheel base (mm) - WB	1225	1257	1286	1313
Fork lenght (mm) - FL	584	584	584	584
Bottom bracket (mm) - BB	350	350	350	350
Seat tube angle (°) - SA	76	76	76	76
Head angle (°) - HA	65	65	65	65
Reach (mm)	433	461	481	504
Stack (mm)	628	638	655	664
Standover (mm) - SO	836	845	863	873

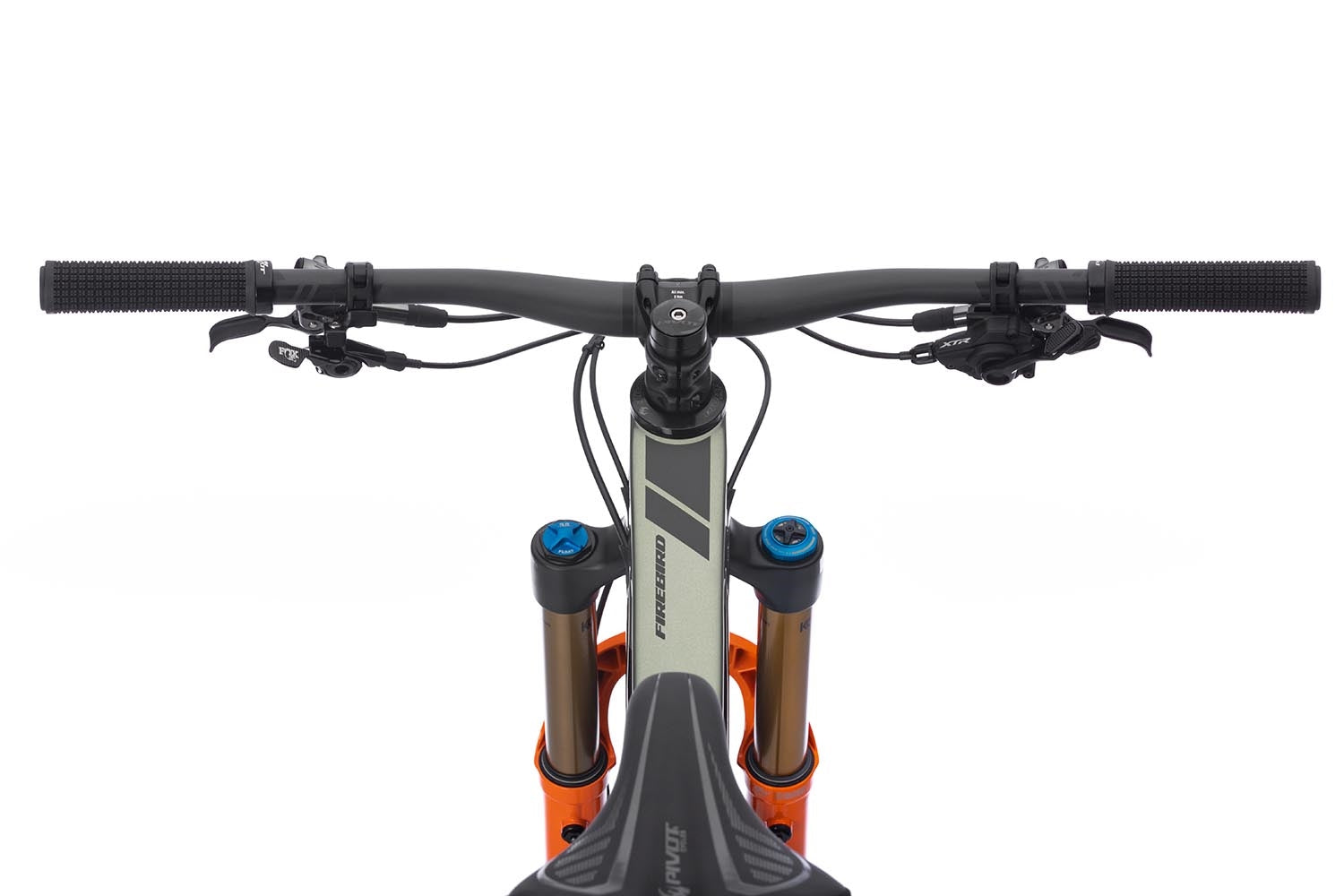

Meet the Firebird

Tear Down The Sky

This new Firebird is a no-holds barred immersion in the pursuit of terminal velocity.

The Firebird has one goal – to be the fastest. The fastest Enduro bike for our team riders, the fastest park bike, the fastest way to rail a top-to-bottom mega-descent – no matter whether that descent is in Moab or Morzine. Every aspect of our long travel 29er is tailored toward the pursuit of unbridled velocity, from its progressive, size specific geometry to the tuned perfection of its dw-Link suspension. Whether you’re chasing EWS podium glory or harboring a burning desire to tear down the sky in a supersonic plume of dust, the Firebird is your ticket to pure speed.

The DNA of Velocity



Modern geometry tailored for aggressive riding lets the Firebird rail at warp speed with battleship stability and laser precision. A relaxed head angle, long reach and generous wheelbase are the key ingredients of high-speed composure. Balance and responsiveness are brought into the mix via size specific chainstays and seat tube angles, ensuring that the Firebird remains nimble and responsive at all times, in all conditions. 165mm of ultra-capable dw-link suspension soaks up everything from jumbled moonscapes to massive G-outs and still snaps to attention and climbs with more authority than bikes offering inches less travel. Fast up, fast down. Fast.



Not As Sweet As It Looks

“Sweet bike, man.” It’s the ultimate lift-line compliment. In the case of the Firebird, that sweetness is only skin deep. Appearances can be deceptive. When you’re coming in way too hot on the wrong side of the safe line, you want a partner with lightning reflexes and the dispassionate calm of a cold blooded killer. The Firebird’s Hollow Core carbon construction cleanly disguises its psychotic side with a taut, sturdy, deceptively lightweight frame that calmly gets you out of the most gripped situations, in much the same way that James Bond can get his hands really dirty while keeping his suit perfectly clean. Super-capable suspension, planted handling, perfectly selected components, shaken, not stirred; the cocktail mix for blazing speed. Drink up!





Geometry & Sizing

We strive to build the best-performing cycling products in the world.

Values in

CM

	SM	MD	LG	XL
Seat Tube Length	37.5 cm	41.0 cm	44.0 cm	47.0 cm
Top Tube Length	59.8 cm	62.4 cm	64.1 cm	66.5 cm
Head Tube Length	9.5 cm	10.8 cm	11.8 cm	12.8 cm
Head Tube Angle	64.0 cm	64.0 cm	64.0 cm	64.0 cm
Seat Tube Angle	76.0 cm	76.5 cm	77.0 cm	77.0 cm
Chainstay Length	43.1 cm	43.4 cm	43.8 cm	44.5 cm
Bottom Bracket Height	35.0 cm	35.0 cm	35.0 cm	35.0 cm
Bottom Bracket Drop	2.0 cm	2.0 cm	2.0 cm	2.0 cm
Standover	66.2 cm	67.2 cm	69.4 cm	70.4 cm
Wheelbase	120.7 cm	123.9 cm	126.7 cm	130.0 cm
Reach	44.5 cm	46.8 cm	48.8 cm	51.0 cm
Stack	61.5 cm	62.7 cm	63.6 cm	64.5 cm

 SPECIFICATIONS



Firebird RIDE SLX BUILD Starting Price £7,449.00

29"

Fox Performance Elite Float X

Fox Performance 38 29", 44mm offset, GRIP - 170mm

Pivot Precision Sealed Cartridge

Shimano XT M8100 SGS 12-Speed

Shimano SLX M7100 10-51t

Shimano SLX M7100 ISPEC EV 12-Speed

Shimano SLX M7120 4-piston

Race Face Ride 32t

Phoenix Race Low Rise Aluminum - 800mm

Phoenix Factory Lock-On

Phoenix Team Enduro/Trail

Fox Transfer Performance Elite 150mm (SM), 175mm (MD-LG), 200mm (XL)

Phoenix WTB Volt Race (Medium Width)

DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29" 15x110 F/12x157 R

Alloy

Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA

Shimano SLX 6-bolt - 203mm Shimano SLX 6-bolt - 203mm

Shimano CN-M7100 12-Speed

KIT	Pro XT/XTR - Air - 29"	Pro XT/XTR - Air w/ Carbon Wheels - 29"	Pro XT/XTR - Coil - 29"	Pro XT/XTR - Coil w/ Carbon Wheels - 29"
STARTING PRICE	£8,749.00	£10,099.00	£8,949.00	£10,299.00
FRAME	Firebird	Firebird	Firebird	Firebird
MATERIAL	Carbon	Carbon	Carbon	Carbon
WHEEL SIZE	29"	29"	29"	29"
REAR SHOCK	Fox Factory Float X2	Fox Factory Float X2	Fox Factory DHX2	Fox Factory DHX2
FORK	Fox Factory 38 29", 44mm offset, GRIP2 - 170mm	Fox Factory 38 29", 44mm offset, GRIP2 - 170mm	Fox Factory 38 29", 44mm offset, GRIP2 - 170mm	Fox Factory 38 29", 44mm offset, GRIP2 - 170mm
HEADSET	Pivot Precision Sealed Cartridge	Pivot Precision Sealed Cartridge	Pivot Precision Sealed Cartridge	Pivot Precision Sealed Cartridge
REAR DER	Shimano XTR M9100 SGS 12-Speed	Shimano XTR M9100 SGS 12-Speed	Shimano XTR M9100 SGS 12-Speed	Shimano XTR M9100 SGS 12-Speed
SHIFTER	Shimano XT M8100 ISPEC EV 12-Speed	Shimano XT M8100 ISPEC EV 12-Speed	Shimano XT M8100 ISPEC EV 12-Speed	Shimano XT M8100 ISPEC EV 12-Speed
BRAKES	Shimano XT M8120 4-piston	Shimano XT M8120 4-piston	Shimano XT M8120 4-piston	Shimano XT M8120 4-piston
CRANKSET	Race Face Æffect R 32t	Race Face Æffect R 32t	Race Face Æffect R 32t	Race Face Æffect R 32t
HANDLEBAR	Phoenix Team Low Rise Carbon - 800mm	Phoenix Team Low Rise Carbon - 800mm	Phoenix Team Low Rise Carbon - 800mm	Phoenix Team Low Rise Carbon - 800mm
GRIPS	Phoenix Factory Lock-On	Phoenix Factory Lock-On	Phoenix Factory Lock-On	Phoenix Factory Lock-On
STEM	Phoenix Team Enduro/Trail	Phoenix Team Enduro/Trail	Phoenix Team Enduro/Trail	Phoenix Team Enduro/Trail
SEATPOST	Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)	Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)	Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)	Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
SADDLE	Phoenix WTB Volt Pro (Medium Width)	Phoenix WTB Volt Pro (Medium Width)	Phoenix WTB Volt Pro (Medium Width)	Phoenix WTB Volt Pro (Medium Width)
CASSETTE	Shimano XT M8100 10-51t	Shimano XT M8100 10-51t	Shimano XT M8100 10-51t	Shimano XT M8100 10-51t
WHEELS	DT Swiss M1900 Alloy 29"	Reynolds Black Label Carbon W/ Industry Nine Hydra Hubs	Newmen Evolution, 30mm - 29" 15x110 F/12x157 R	Newmen Carbon Advanced- 29" 15x110 F/12x157 R
TIRES	Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA	Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA	Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA	Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
ROTOR	Shimano XT CenterLock - 203mm Shimano XT CenterLock - 203mm	Shimano XT CenterLock - 203mm Shimano XT CenterLock - 203mm	Shimano XT CenterLock - 203mm Shimano XT CenterLock - 203mm	Shimano XT CenterLock - 203mm Shimano XT CenterLock - 203mm
CHAIN	Shimano CN-M8100 12-Speed	Shimano CN-M8100 12-Speed	Shimano CN-M8100 12-Speed	Shimano CN-M8100 12-Speed

THE SWEET SPOT

PRODUCT DETAILS

Get everything you need to know about the Shuttle AM.

• Ultralight Hollow Core Carbon Frame.
• Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds.
• Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds.
• Bosch 250wh PowerMore Range Extender Compatible.
• Integrated Power and Mode Display.
• Wheel Mounted Speed Sensor.
• Wireless Bosch Remote.
• 160mm Fox 36 Grip 2 Factory Fork.

• Flip-Chip Upper Link Mount.
• Fully Mulletable and 27.5+” Wheel Compatible.
• Pivot Dock Tool System Compatible.
• Water Bottle Clearance on All Sizes.
• Fox Factory Float X Shock with 148mm of Progressive Suspension Travel.
• Injection Moulded Rubberized Frame Protection.
• Full Internal Routing with Pivot Cable Port System.

SPECIFICATIONS

KIT	Pro X0 Eagle Transmission	Team XX Eagle Transmission
MSRP	£12,699	£14,899
FRAME	Shuttle AM	Shuttle AM
WHEEL SIZE	29"	29"
REAR SHOCK	Fox Factory Float X	Fox Factory Float X
FORK	Fox Factory E-MTB 36 29", 44mm offset, GRIP2 - 160mm	Fox Factory E-MTB 36 29", 44mm offset, GRIP2 - 160mm
HEADSET	Pivot Precision Sealed Cartridge	Pivot Precision Sealed Cartridge
REAR DER	Sram X0 Eagle Transmission 12-Speed	Sram XX Eagle Transmission 12-Speed
CASSETTE	Sram X0 1295 Eagle Transmission 10-52t	Sram XX 1297 Eagle Transmission 10-52t
SHIFTER	Sram AXS Pod Controller	Sram AXS Pod Controller
BRAKES	Shimano XT M8120 4-piston	Shimano XTR M9120 4-piston
CRANKSET	Praxis Alloy eCranks E-MTB 34t	Praxis Carbon eCranks E-MTB 34t
HANDLEBAR	Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)	Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)
GRIPS	Phoenix Factory Lock-On	Phoenix Factory Lock-On
STEM	Phoenix Team Enduro/Trail	Phoenix Team Enduro/Trail
SEATPOST	Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)	Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
SADDLE	Phoenix WTB Volt Pro (Medium Width)	Phoenix WTB Volt Team (Medium Width)
WHEELS	DT Swiss Hybrid HX1501, 30mm - 29" 15x110 F/12x157 R	DT Swiss Hybrid HXC1501 Carbon, 30mm - 29" 15x110 F/12x157 R
WHEEL MATERIAL	Alloy	Carbon
TIRES	Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA	Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
ROTOR	Shimano XT CenterLock - 203mm Shimano XT CenterLock - 203mm	Shimano XT CenterLock - 203mm Shimano XT CenterLock - 203mm
CHAIN	Sram X0 Eagle Transmission Flattop 12-Speed	Sram XX Eagle Transmission Flattop 12-Speed

GEOMETRY

Switchblade

Beyond All Mountain

PRODUCT DETAILS

Optimized for the Entire Mountain

We tailored every detail of the Switchblade to deliver a bike that’s ready to conquer the entire mountain. Progressive geometry broadens the performance envelope while retaining the versatility that made the original so good. Always with an eye on confidence-inspiring design, we shortened, straightened, and steepened the Switchblade’s seat tube to allow for longer travel dropper seat posts. The all-new compact frame design reduces weight and increases stiffness, but perhaps best of all, it allows for greatly reduced stand over height across a broad range of sizes. With an industry-leading fit philosophy, the Switchblade offers an ideal fit for riders from 5’ to 6’7” tall.

Uncommon Versatility

The Switchblade was already a bike ahead of its time and the new Switchblade pushes the versatility envelope even further. It doesn’t matter if you want to run 29er wheels, 27.5" X 2.8” plus tires or even a 29”/27.5” combo – the Switchblade can be perfected for all. A new flip chip with two settings means there isn’t any compromise in geometry. Choose the geometry that best fits your setup or handling preferences. The all-new Switchblade’s extraordinary versatility and category bending capability redefine performance across every type of trail.

 Graphics, colours, and specifications are subject to change without prior notification.

SPECIFICATIONS

STARTING PRICE	Pro XT/XTR Build £7999.00
FRAME	Switchblade
WHEEL SIZE	29"
REAR SHOCK	Fox Factory FLOATX
FORK	Fox Factory 36 29", 44mm offset, GRIP2 - 160mm
HEADSET	Pivot Precision Sealed Cartridge
REAR DER	Shimano XTR M9100 SGS 12-Speed
CASSETTE	Shimano XT M8100 10-51t
SHIFTER	Shimano XT M8100 ISPEC EV 12-Speed
BRAKES	Shimano XT M8120 4-piston
CRANKSET	Race Face Æffect R 32t
HANDLEBAR	Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM-LG), One Up Low Rise Carbon 800mm (XL)
GRIPS	Phoenix Factory Lock-On
STEM	Phoenix Team Enduro/Trail
SEATPOST	Fox Factory Transfer 125mm (XS), 150mm (SM), 175mm (MD), 200mm (LG-XL)
SADDLE	Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Volt Pro (Medium Width) (MD-XL)
WHEELS	DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R
WHEEL MATERIAL	Alloy

STARTING PRICE	Pro XO AXS Transmission £8999.00
FRAME	Switchblade
WHEEL SIZE	29"
REAR SHOCK	Fox Factory FLOATX
FORK	Fox Factory 36 29", 44mm offset, GRIP2 - 160mm
HEADSET	Pivot Precision Sealed Cartridge
REAR DER	SRAM XO AXS Transmission
CASSETTE	SRAM XO AXS Transmission
SHIFTER	SRAM XO AXS Pod Controller
BRAKES	SRAM Code RSC 4 Piston
CRANKSET	SRAM XO Eagle Dub 32T
HANDLEBAR	Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM-LG), One Up Low Rise Carbon 800mm (XL)
GRIPS	Phoenix Factory Lock-On
STEM	Phoenix Team Enduro/Trail
SEATPOST	Fox Factory Transfer 125mm (XS), 150mm (SM), 175mm (MD), 200mm (LG-XL)
SADDLE	Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Volt Pro (Medium Width) (MD-XL)
WHEELS	DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R
WHEEL MATERIAL	Alloy

Geometry & Sizing

The Switchblade is a do it all mountain bike that shines in the bike
park and on singletrack, this bike is built to handle all the mountains, all the time

Do Everything, And Do It Better

The new Switchblade has a slacker head angle, steeper seat angle, increased reach and a longer wheelbase than its predecessor. Size specific chain stays are tucked in and responsive but grow incrementally longer on larger frames. This translates to added stability at warp speeds while still maintaining the snap and pop that is ingrained in the Switchblade’s DNA.

From Trail to Park

The new Switchblade is light enough to pedal all day, but stout enough to run a Fox 38 without any worries. You can spin this rig up into the jagged high places, and it is burly enough, composed enough, planted enough and smooth enough to smash every line all the way back down, laughing the whole way.

Ultra Light Hollow Core Carbon Frame.

Size Specific Chainstays

142mm of supple yet efficient dw link™ suspension travel featuring a vertically mounted
trunnion metric air shock.

Equipped with a 44mm offset 160mm travel Fox 36 Grip or Grip2.

Flip Chip for on trail geometry customization.

Compatible with both 29, 27.5+" and 27.5” rear/29” front (mullet) wheel sizes without
compromise thanks to the Flip chip’s adjustable geometry feature

Large Water Bottle Clearance on all sizes.

Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame.

Hassle free full internal routing with Pivot cable port system.

Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling

Specifications

Geometry
